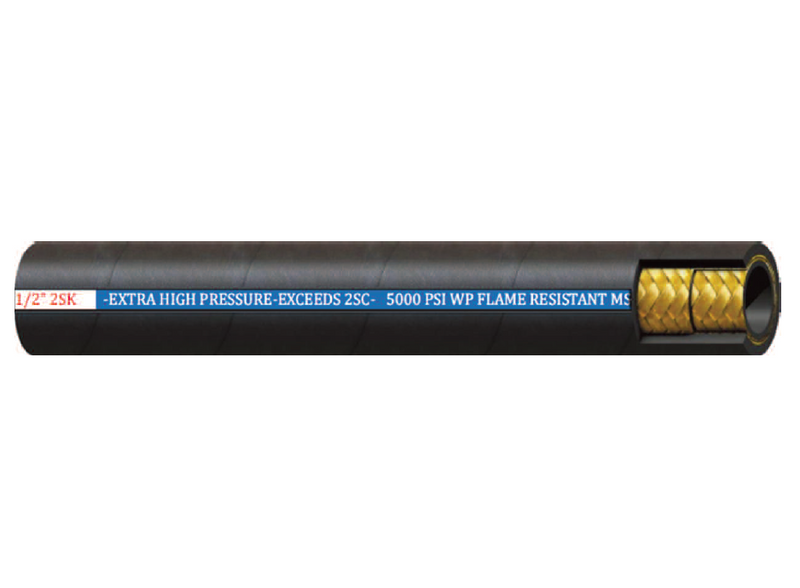

1/2" 2SK Couplamatic Import Thin Cover 2-Wire Extreme Pressure Hydraulic Hose (Exceeds 2SN/2SC) - 1/2" ID - 300ft

1/2" 2SK by Couplamatic | Import Thin Cover | 2-Wire Extreme Pressure Hydraulic Hose | Exceeds 2SN/2SC | 1/2" ID | 300ft

Save $90.00

$810.00

$810.00 - $810.00

$810.00

$720.00

$720.00 - $720.00

$720.00

Couplamatic Systems Inc.
Two Wire Braid Hoses - 2SN Import Thin Cover 2-Wire Hydraulic Hose - SAE 100R2AT/2SN

Package Quantity: 300 FT

Quantity

Specifications for Variant SKU: 1/2" 2SK Couplamatic \| 300 \|
Series:	2SK Series
Hose Color(s):	Black
Dash Size:	-8
Internal Diameter:	0.50in
Outer Diameter:	0.81in
Applicable Specs & Approvals:	Applicable MSHA Standards
Compatible with the following Series:	A Series \| Grip Crimp Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	Rating:	Exceeds 2SN/2SC
Cover:	Abrasion and Flame Resistant Cover, MSHA Approved	Reinforcement:	Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" 2SK	1/4"	0.520"	6,530 lbs.	26,120 lbs.	2.0"	24 lbs.	500ft
3/8" 2SK	3/8"	0.687"	5,585 lbs.	22,340 lbs.	3.0"	34 lbs.	400ft
1/2" 2SK	1/2"	0.810"	5,000 lbs.	20,000 lbs.	3.6"	43 lbs.	300ft
5/8" 2SK	5/8"	0.980"	4,625 lbs.	18,500 lbs.	4.0"	51 lbs.	250ft
3/4" 2SK	3/4"	1.155"	4,350 lbs.	17,400 lbs.	5.0"	61 lbs.	250ft
1" 2SK	1"	1.410"	3,250 lbs.	13,000 lbs.	6.5"	94 lbs.	200ft
1-1/4" 2SK	1-1/4"	1.715"	2,500 lbs.	10,000 lbs.	12.0"	130 lbs.	Bulk

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
