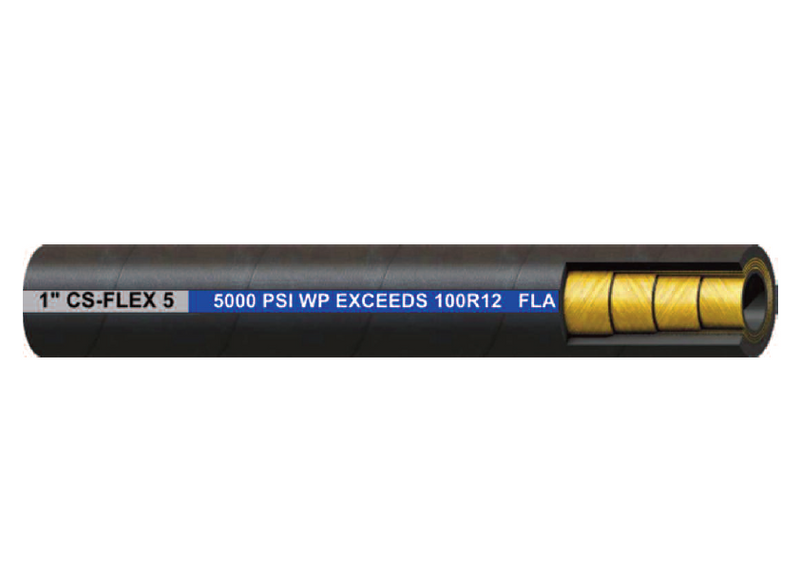

1" CS-FLEX 5 Couplamatic Four Spiral High Pressure Import Hydraulic Hose (SAE 100R12) - 1" ID - Bulk

1" CS-FLEX 5 by Couplamatic | Four Spiral High Pressure Import Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length

Save $59.92 Save $59.92
$539.25
$539.25 - $539.25
$539.25
$479.33
$479.33 - $479.33
$479.33

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - CS-FLEX 5 Four Spiral High Pressure Import Hydraulic Hose - (SAE 100R12)
Specifications for Variant SKU: 1" CS-FLEX 5 Couplamatic | 50 |
Series: CS-FLEX 5 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.48in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R12
Compatible with the following Series: GW Series  |   4GC Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: Meets and Exceeds SAE 100R12
Cover: Abrasion and Flame Resistant Black Cover, MSHA Approved Reinforcement: 4 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/2" CS-FLEX 5 1/2" 0.950" 5,500 lbs. 22,000 lbs. 3.5" 57 lbs. Bulk
3/4" CS-FLEX-5 3/4" 1.200" 5,500 lbs. 22,000 lbs. 4.7" 96 lbs. Bulk
1" CS-FLEX 5 1" 1.480" 5,000 lbs. 20,000 lbs. 7" 148 lbs. Bulk
1-1/4" CS-FLEX 5 1-1/4" 1.810" 5,000 lbs. 20,000 lbs. 11" 173 lbs. Bulk
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
