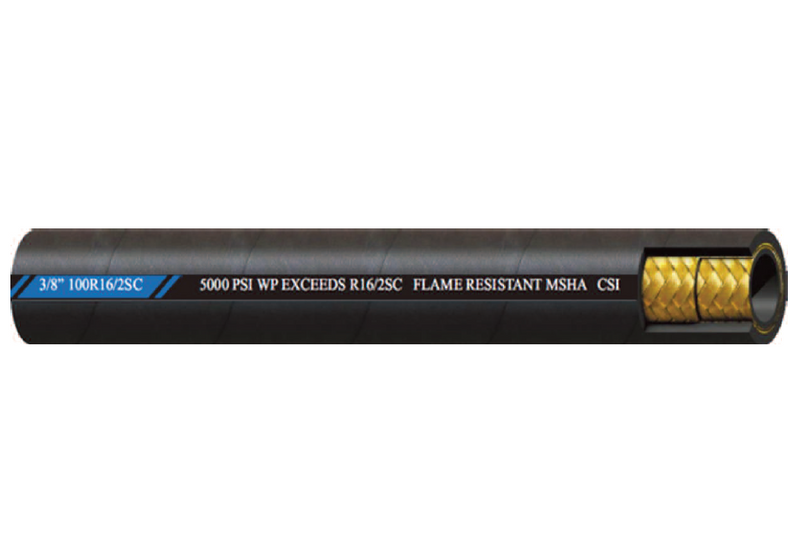

1" R16 Couplamatic Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R16 / DIN 2SC) - 1" ID - 200ft

1" R16 by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16/DIN 2SC | 1" ID | 200ft

$191.55 - $1,532.45

$191.55

$114.93

$114.93 - $919.47

$114.93

Couplamatic Systems Inc.
Two Wire Braid Hoses - R16 Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose - SAE 100R16/ DIN 2SC

Quantity

Specifications for Variant SKU: 1" R16 Couplamatic \| 25 \|
Series:	R16 Series
Hose Color(s):	Black
Dash Size:	-16
Internal Diameter:	1in
Outer Diameter:	1.405in
Applicable Specs & Approvals:	EN857, Applicable MSHA Standards, SAE 100R16
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R16 / DIN 2SC
Cover:	Abrasion and Flame Resistant Cover, MSHA Approved	Reinforcement:	Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" R16	1/4"	0.530"	5,800 lbs.	23,200 lbs.	2"	18 lbs.	500ft
3/8" R16	3/8"	0.687"	5,000 lbs.	20,000 lbs.	2.5"	27 lbs.	400ft
1/2" R16	1/2"	0.812"	4,250 lbs.	17,000 lbs.	3.5"	35 lbs.	300ft
5/8" R16	5/8"	0.937"	3,625 lbs.	14,500 lbs.	4"	40 lbs.	250ft
3/4" R16	3/4"	1.090"	3,125 lbs.	12,500 lbs.	4.8"	54 lbs.	250ft
1" R16	1"	1.405"	2,500 lbs.	10,000 lbs.	6"	74 lbs.	200ft

**Crimps to 100R1AT One Wire Thin Cover Specifications - Tighter Bend Radius than R1 and R2**
