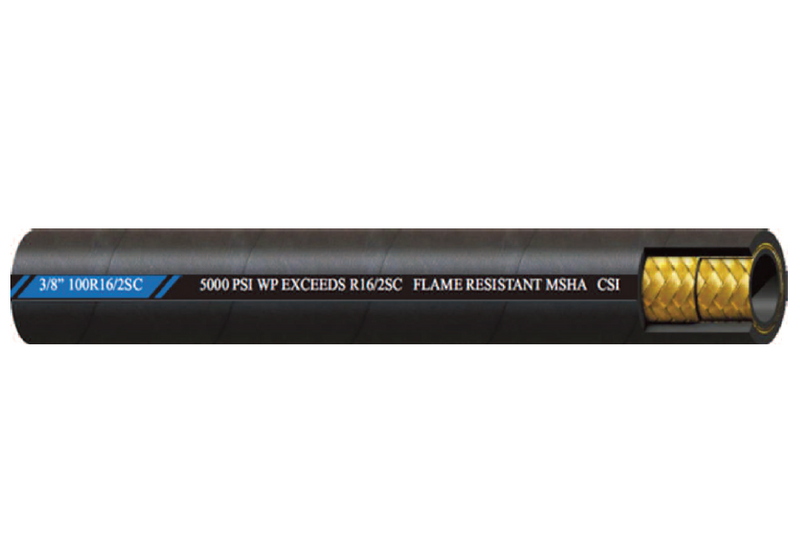

3/8" R16 Couplamatic Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R16 / DIN 2SC) - 3/8" ID - 400ft

3/8" R16 by Couplamatic | Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16/DIN 2SC | 3/8" ID | 400ft

Save $97.33 Save $97.33
$876.00
$876.00 - $876.00
$876.00
$778.67
$778.67 - $778.67
$778.67

Couplamatic Systems Inc.
Two Wire Braid Hoses - R16 Import Two Wire Hi-Pressure Extremely Flexible Hydraulic Hose - SAE 100R16/ DIN 2SC

Package Quantity: 400 FT

Specifications for Variant SKU: 3/8" R16 Couplamatic | 400 |
Series: R16 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.687in
Applicable Specs & Approvals: EN857, Applicable MSHA Standards, SAE 100R16
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R16 / DIN 2SC
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" R16 1/4" 0.530" 5,800 lbs. 23,200 lbs. 2" 18 lbs. 500ft
3/8" R16 3/8" 0.687" 5,000 lbs. 20,000 lbs. 2.5" 27 lbs. 400ft
1/2" R16 1/2" 0.812" 4,250 lbs. 17,000 lbs. 3.5" 35 lbs. 300ft
5/8" R16 5/8" 0.937" 3,625 lbs. 14,500 lbs. 4" 40 lbs. 250ft
3/4" R16 3/4" 1.090" 3,125 lbs. 12,500 lbs. 4.8" 54 lbs. 250ft
1" R16 1" 1.405" 2,500 lbs. 10,000 lbs. 6" 74 lbs. 200ft

**Crimps to 100R1AT One Wire Thin Cover Specifications - Tighter Bend Radius than R1 and R2**
