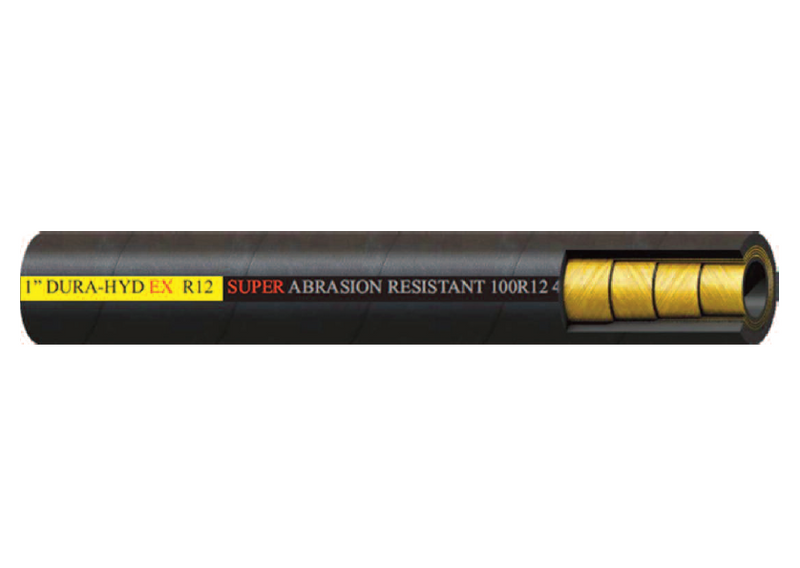

1" DHEXR12 Couplamatic DURA HYD EX Super Abrasion Resistant Four Spiral High Pressure Hydraulic Hose (SAE 100R12) - 1" ID - Bulk

1" DHEXR12 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Four Spiral High Pressure Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length

Save $307.33

$768.33

$768.33 - $768.33

$768.33

$461.00

$461.00 - $461.00

$461.00

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - DHEXR12 DURA HYD EX Super Abrasion Resistant Four Spiral Import High Pressure Hydraulic Hose - (SAE 100R12)

Specifications for Variant SKU: 1" DHEXR12 Couplamatic \| 50 \|
Series:	DHEXR12 Series
Hose Color(s):	Black
Dash Size:	-16
Internal Diameter:	1in
Outer Diameter:	1.496in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R12
Compatible with the following Series:	GW Series \| 4GC Series

SAE 100R12 — Four Spiral, Super Abrasion Resistant

Dura-Hyd EX Four Spiral High Pressure Hydraulic Hose

Four-spiral SAE 100R12 hose with a flame resistant bi-layer cover engineered for severe external abrasion — for high pressure circuits on equipment that drags and rubs.

1

What is this hose used for?

High Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R12

Cover

Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA

Reinforcement

4 High Tensile Steel Spirals

Temperature

-40°F to +250°F (-40°C to +121°C)

3

What are the main product features?

Bi-layer SUPER abrasion resistant cover — many times the cover life of a standard R12.
Four high tensile steel spirals — full SAE 100R12 pressure and impulse capability.
Flame resistant, MSHA — approved for mining service.
+250°F service temperature — suited to hot hydraulic systems.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/2" DHEXR12	1/2"	0.937"	4,000 lbs.	16,000 lbs.	3.5"	56 lbs.	Bulk
3/4" DHEXR12	3/4"	1.208"	4,000 lbs.	16,000 lbs.	4.8"	95 lbs.	Bulk
1" DHEXR12	1"	1.496"	4,000 lbs.	16,000 lbs.	6"	131 lbs.	Bulk
1-1/4" DHEXR12	1-1/4"	1.850"	3,000 lbs.	12,000 lbs.	16.5"	194 lbs.	Bulk
1-1/2" DHEXR12	1-1/2"	2.106"	2,500 lbs.	10,000 lbs.	20"	229 lbs.	Bulk
2" DHEXR12	2"	2.626"	2,500 lbs.	10,000 lbs.	25"	317 lbs.	Bulk

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
