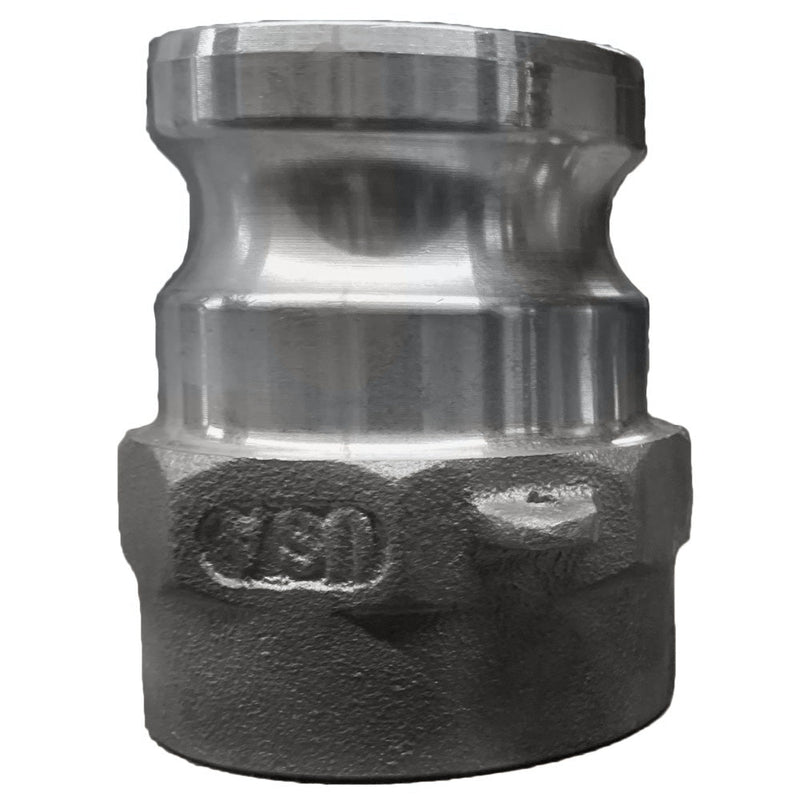

1000120H (20AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 2" Adapter x 2" Female NPT | Aluminum | Buna-N Seal

Save $23.21 Save $23.21
Original price $62.53
Original price $62.53 - Original price $62.53
Original price $62.53
Current price $39.32
$39.32 - $39.32
Current price $39.32

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type AHD | Adapter x Female NPT | Aluminum | Buna-N Seal

Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.

Made in the USA

Specifications for Variant SKU: 1000120H PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2in Male Cam & Groove, 2in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name
Item # Heavy Duty
Adapter
Female NPT
Thread
Max. Allowable
Working Press.
(PSI)*
15AHD 1000115H 1-1/2" 1-1/2" 500 PSI
20AHD 1000120H 2" 2" 500 PSI
40AHD 1000140H 4" 4" 300 PSI
60AHD 1000160H 6" 6" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
