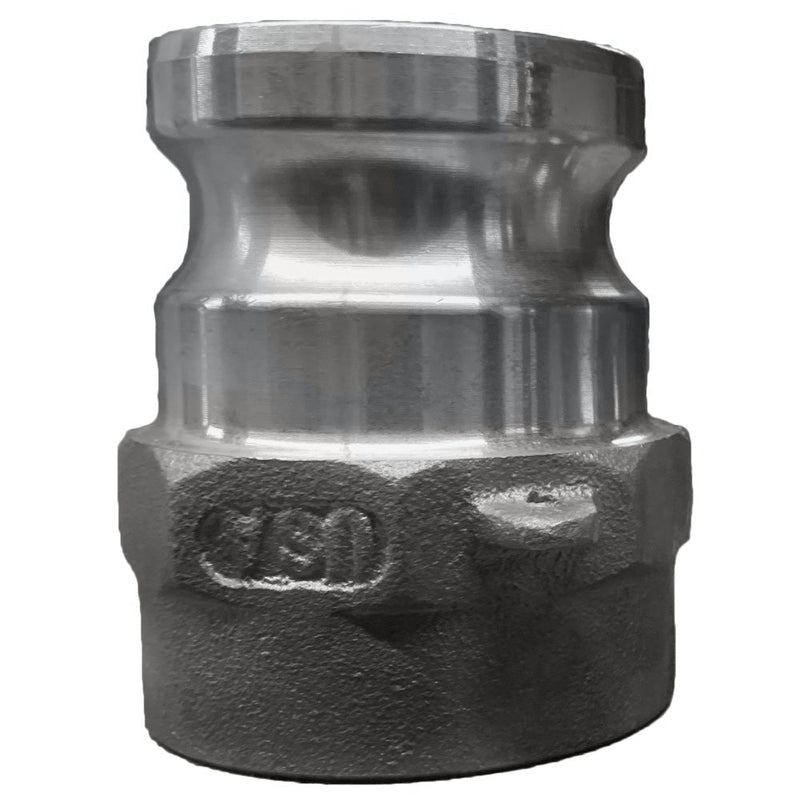

1000160H (60AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 6" Adapter x 6" Female NPT | Aluminum | Buna-N Seal

Save $118.10

$318.15

$318.15 - $318.15

$318.15

$200.05

$200.05 - $200.05

$200.05

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type AHD | Adapter x Female NPT | Aluminum | Buna-N Seal

Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.

Made in the USA

Specifications for Variant SKU: 1000160H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	6in Male Cam & Groove, 6in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Heavy Duty Adapter	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15AHD	1000115H	1-1/2"	1-1/2"	500 PSI
20AHD	1000120H	2"	2"	500 PSI
40AHD	1000140H	4"	4"	300 PSI
60AHD	1000160H	6"	6"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
