Weatherhead by Danfoss

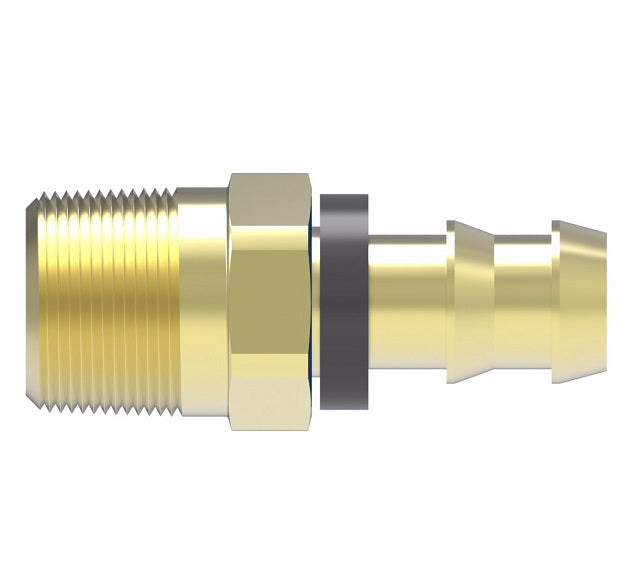

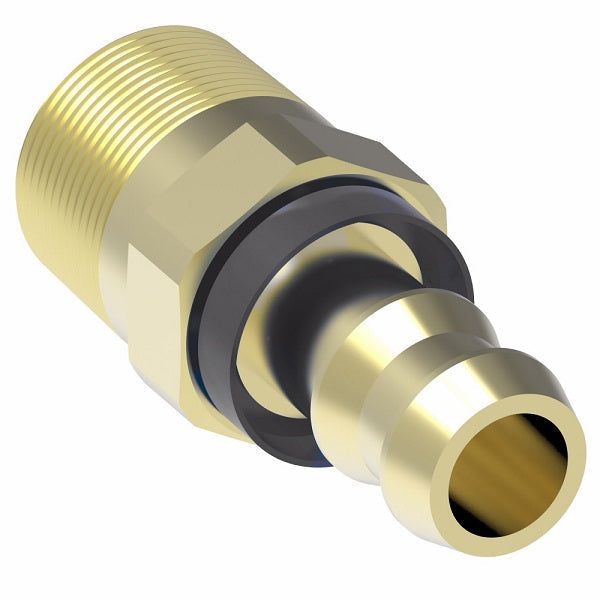

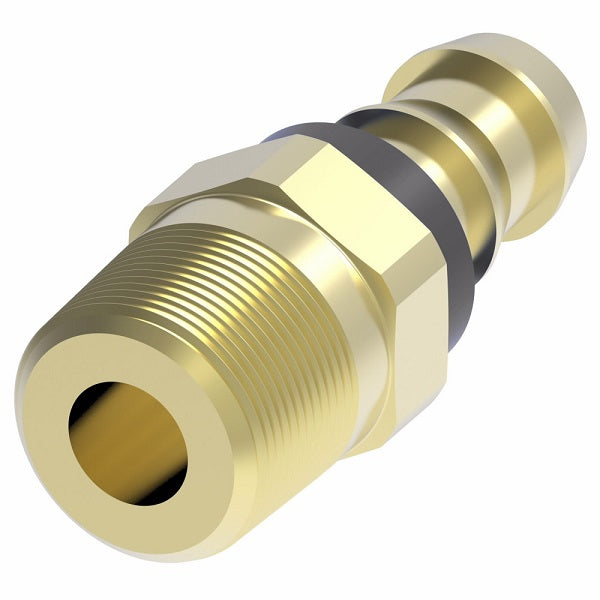

Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Male Pipe Rigid - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.

Quantity

Specifications for Variant SKU: 10010B-108 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 5/8in Push-On Hose Barb
Material(s):	Brass
Compatible with the following Series:	H100 Series \| H101 Series \| H201 Series \| H332 Series \| 35FH Series

Note:
Pressure: Determined by maximum working pressure for hose size. CAUTION: Sealing integrity may be damaged by the use of clamps. Label Set: FS-500
Material:
CA360 Brass
Compatible Hose:
H100, H101, H201, H332, 35FH
Assembly instructions:
To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly. 1. Lubricate insert. 2. Hold hose at angle as shown and push on and up over first barb. 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.) Assembly Lubricant: 1 Gallon: 222070-8 1 Pint: 222070
Disassembly instructions:
1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged. 2. Bend hose and remove with quick pull.


Brass Part Number	Hose I.D.	Pipe Size	Thread Size	A	Hose Cut-off Factor	Hole Diameter	Hex E
10004B-102	1/4"	1/8"	1/8-27	1.29"	0.65"	0.172"	7/16"
10004B-104	1/4"	1/4"	1/4-18	1.52"	0.88"	0.172"	9/16"
10005B-104	5/16"	1/4"	1/4-18	1.57"	0.87"	0.234"	9/16"
10006B-102	3/8"	1/8"	1/8-27	1.46"	0.69"	0.297"	1/2"
10006B-104	3/8"	1/4"	1/4-18	1.65"	0.88"	0.297"	9/16"
10006B-106	3/8"	3/8"	3/8-18	1.65"	0.88"	0.297"	11/16"
10008B-106	1/2"	3/8"	3/8-18	1.85"	0.94"	0.391"	11/16"
10008B-108	1/2"	1/2"	1/2-14	2.10"	1.19"	0.391"	7/8"
10010B-108	5/8"	1/2"	1/2-14	2.60"	1.19"	0.484"	7/8"
10012B-112	3/4"	3/4"	3/4-14	2.66"	1.25"	0.609"	1-1/16"
10016B-116	1"	1"	1-11-1/2	3.08"	1.45"	0.85"	1-3/8"

Note: Drawings may differ from actual parts.
