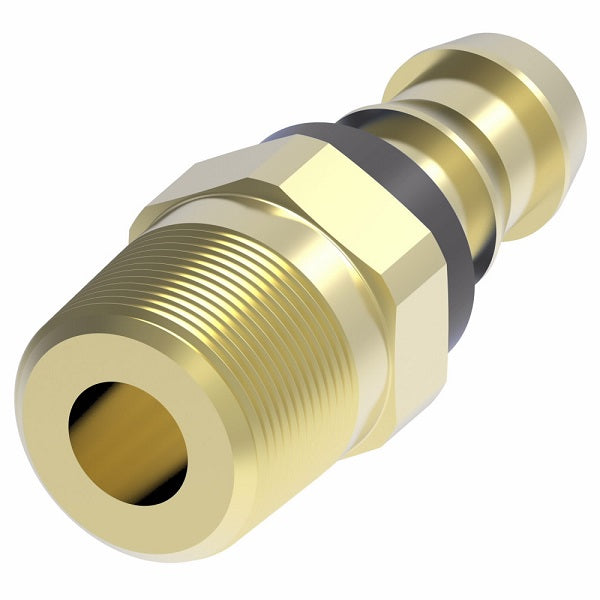

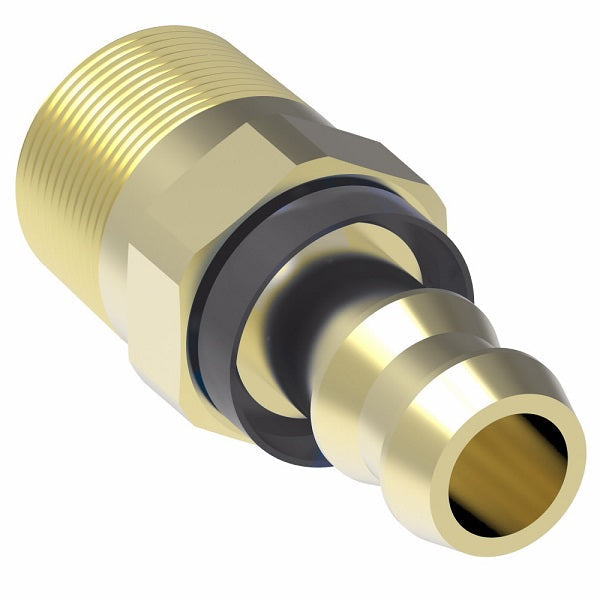

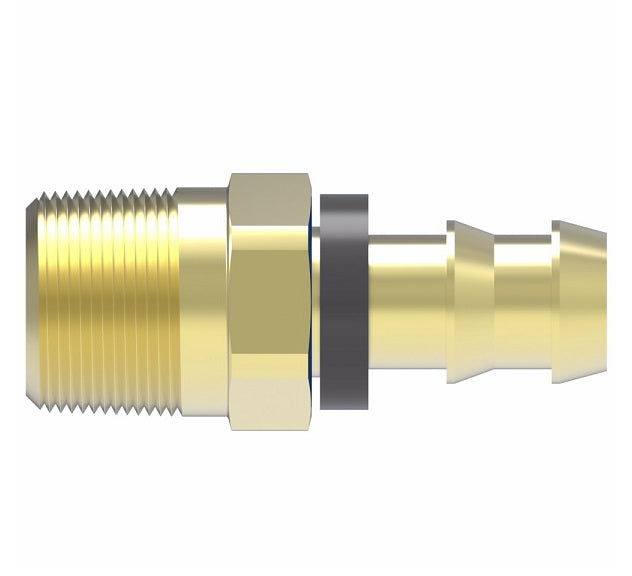

10016B-116 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -16 Male NPTF x -16 Push-On Hose Barb | Brass
10016B-116 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -16 Male NPTF x -16 Push-On Hose Barb | Brass
10016B-116 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -16 Male NPTF x -16 Push-On Hose Barb | Brass
10016B-116 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -16 Male NPTF x -16 Push-On Hose Barb | Brass

10016B-116 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -16 Male NPTF x -16 Push-On Hose Barb | Brass

$39.00 - $39.00
$39.00
$39.00 - $39.00
$39.00

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Male Pipe Rigid - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Specifications for Variant SKU: 10016B-116 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male NPTF, 1in Push-On Hose Barb
Material(s): Brass
Compatible with the following Series: H100 Series  |   H101 Series  |   H201 Series  |   H332 Series  |   35FH Series
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Pipe
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
E
10004B-102 1/4" 1/8" 1/8-27 1.29" 0.65" 0.172" 7/16"
10004B-104 1/4" 1/4" 1/4-18 1.52" 0.88" 0.172" 9/16"
10005B-104 5/16" 1/4" 1/4-18 1.57" 0.87" 0.234" 9/16"
10006B-102 3/8" 1/8" 1/8-27 1.46" 0.69" 0.297" 1/2"
10006B-104 3/8" 1/4" 1/4-18 1.65" 0.88" 0.297" 9/16"
10006B-106 3/8" 3/8" 3/8-18 1.65" 0.88" 0.297" 11/16"
10008B-106 1/2" 3/8" 3/8-18 1.85" 0.94" 0.391" 11/16"
10008B-108 1/2" 1/2" 1/2-14 2.10" 1.19" 0.391" 7/8"
10010B-108 5/8" 1/2" 1/2-14 2.60" 1.19" 0.484" 7/8"
10012B-112 3/4" 3/4" 3/4-14 2.66" 1.25" 0.609" 1-1/16"
10016B-116 1" 1" 1-11-1/2 3.08" 1.45" 0.85" 1-3/8"

Note: Drawings may differ from actual parts.
