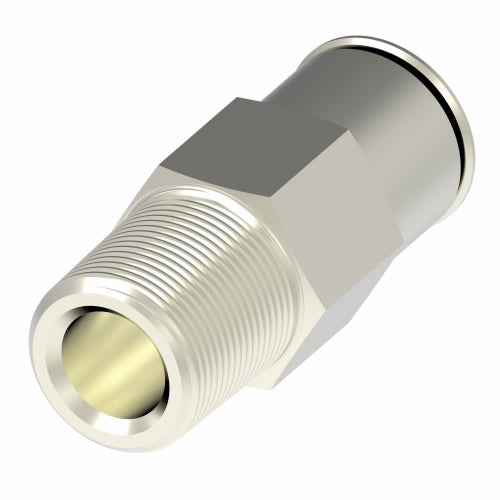

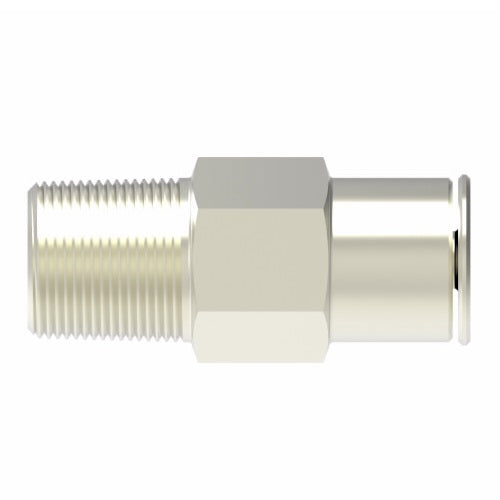

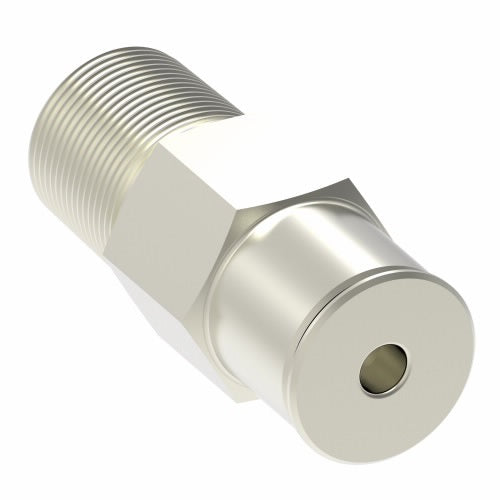

1168X2.5X4 by Danfoss | Push to Connect Adapter | Male Connector | 5/32" Tube OD x 1/4" Male Pipe | Nickel Plated Brass

1168X2.5X4 by Danfoss | Push to Connect Adapter | Male Connector | 5/32" Tube OD x 1/4" Male Pipe | Nickel Plated Brass

Name: 1168X2.5X4 by Danfoss | Push to Connect Adapter | Male Connector | 5/32" Tube OD x 1/4" Male Pipe | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1168X2.5X4 Danfoss
Price: 7.76 USD
Availability: InStock

$7.76 - $7.76

$7.76

$7.76 - $7.76

$7.76

Aeroquip® by Danfoss
Push to Connect Adapter - Male Connector
Male Pipe x Push to Connect End
Straight

Allen wrench use permits close quarter installation not possible with a standard wrench.

Quantity

Specifications for Variant SKU: 1168X2.5X4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/32in Tube Compression, 1/4in Male NPT
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube O.D.	Male Pipe Thread	C	F	G	H	L	SW (mm)	SW1 (mm)
1168x2A	1/8"	10-32 UNF	0.26"	0.35"	0.41"	0.18"	0.85"	9	2
1168X2	1/8"	1/8"	0.19"	0.34"	0.55"	0.31"	0.75"	12	2.5
1168X2X4	1/8"	1/4"	0.35"	0.34"	0.62"	0.47"	0.90"	14	2.5
1168X2.5	5/32"	1/8"	0.19"	0.34"	0.55"	0.31"	0.74"	12	2.5
1168X2.5X4	5/32"	1/4"	0.35"	0.34"	0.62"	0.49"	0.90"	14	2.5
1168X4	1/4"	1/8"	0.28"	0.46"	0.55"	0.31"	0.92"	12	4
1168X4X4	1/4"	1/4"	0.40"	0.46"	0.62"	0.49"	1.04"	14	4
1168X4X6	1/4"	3/8"	0.42"	0.46"	0.86"	0.49"	1.10"	19	4
1168X5	5/16"	1/8"	0.39"	0.53"	0.62"	0.31"	1.08"	14	5
1168X5X4	5/16"	1/4"	0.41"	0.53"	0.62"	0.49"	1.10"	14	6
1168X5X6	5/16"	3/8"	0.41"	0.53"	0.86"	0.49"	1.10"	19	6
1168X6X2	3/8"	1/8"	0.39"	0.60"	0.79"	0.31"	1.18"	17	4
1168X6	3/8"	1/4"	0.55"	0.60"	0.79	0.47"	1.34"	17	7
1168X6X6	3/8"	3/8"	0.35"	0.60"	0.86"	0.47"	1.14"	19	7
1168X6X8	3/8"	1/2"	0.39"	0.60"	1.00"	0.61"	1.16"	22	7
1168X8	1/2"	3/8"	0.48"	0.72"	0.36"	0.49"	1.31"	19	10
1168X8X8	1/2"	1/2"	0.42"	0.72"	1.00"	0.61"	1.26"	22	10

*UNF Thread. Seals with nylon washer (included).
