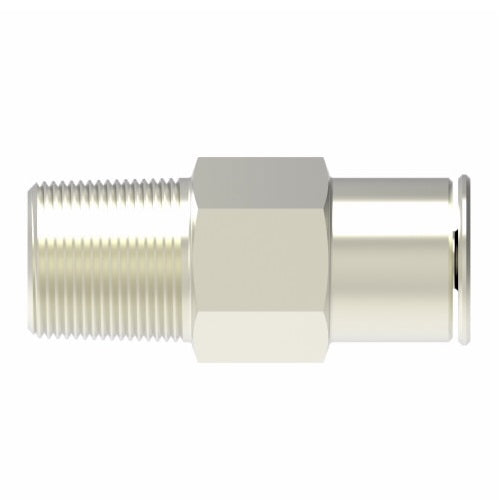

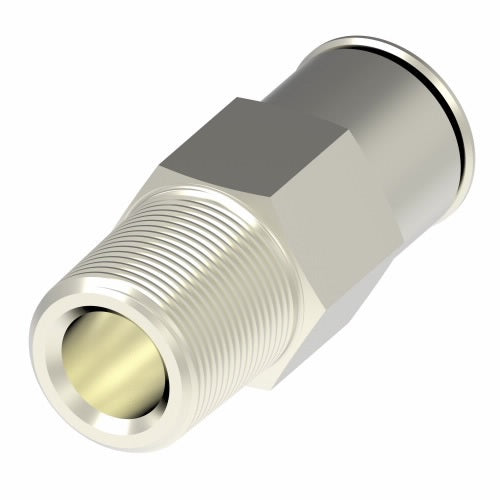

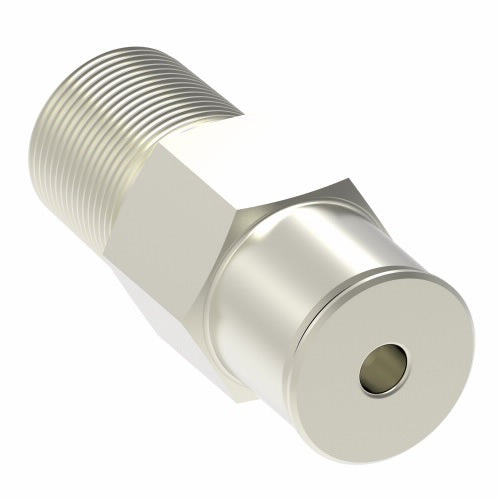

1168X2 by Danfoss | Push to Connect Adapter | Male Connector | 1/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass
1168X2 by Danfoss | Push to Connect Adapter | Male Connector | 1/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass
1168X2 by Danfoss | Push to Connect Adapter | Male Connector | 1/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass
1168X2 by Danfoss | Push to Connect Adapter | Male Connector | 1/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass

1168X2 by Danfoss | Push to Connect Adapter | Male Connector | 1/8" Tube OD x 1/8" Male Pipe | Nickel Plated Brass

$5.32 - $5.32
$5.32
$5.32 - $5.32
$5.32

Aeroquip® by Danfoss
Push to Connect Adapter - Male Connector
Male Pipe x Push to Connect End
Straight

Allen wrench use permits close quarter installation not possible with a standard wrench.
Specifications for Variant SKU: 1168X2 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Tube Compression, 1/8in Male NPT
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread C F G H L SW
(mm)		 SW1
(mm)
1168x2A 1/8" 10-32 UNF 0.26" 0.35" 0.41" 0.18" 0.85" 9 2
1168X2 1/8" 1/8" 0.19" 0.34" 0.55" 0.31" 0.75" 12 2.5
1168X2X4 1/8" 1/4" 0.35" 0.34" 0.62" 0.47" 0.90" 14 2.5
1168X2.5 5/32" 1/8" 0.19" 0.34" 0.55" 0.31" 0.74" 12 2.5
1168X2.5X4 5/32" 1/4" 0.35" 0.34" 0.62" 0.49" 0.90" 14 2.5
1168X4 1/4" 1/8" 0.28" 0.46" 0.55" 0.31" 0.92" 12 4
1168X4X4 1/4" 1/4" 0.40" 0.46" 0.62" 0.49" 1.04" 14 4
1168X4X6 1/4" 3/8" 0.42" 0.46" 0.86" 0.49" 1.10" 19 4
1168X5 5/16" 1/8" 0.39" 0.53" 0.62" 0.31" 1.08" 14 5
1168X5X4 5/16" 1/4" 0.41" 0.53" 0.62" 0.49" 1.10" 14 6
1168X5X6 5/16" 3/8" 0.41" 0.53" 0.86" 0.49" 1.10" 19 6
1168X6X2 3/8" 1/8" 0.39" 0.60" 0.79" 0.31" 1.18" 17 4
1168X6 3/8" 1/4" 0.55" 0.60" 0.79 0.47" 1.34" 17 7
1168X6X6 3/8" 3/8" 0.35" 0.60" 0.86" 0.47" 1.14" 19 7
1168X6X8 3/8" 1/2" 0.39" 0.60" 1.00" 0.61" 1.16" 22 7
1168X8 1/2" 3/8" 0.48" 0.72" 0.36" 0.49" 1.31" 19 10
1168X8X8 1/2" 1/2" 0.42" 0.72" 1.00" 0.61" 1.26" 22 10

*UNF Thread. Seals with nylon washer (included).
