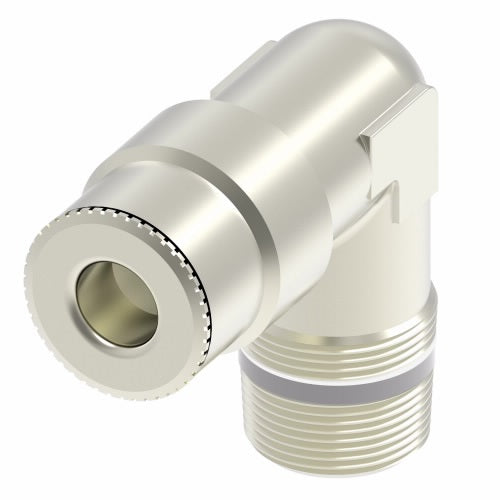

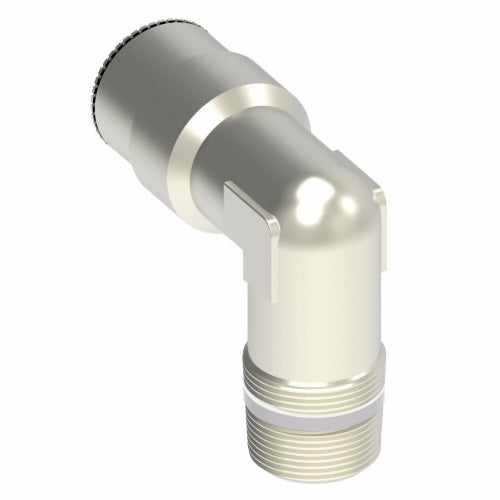

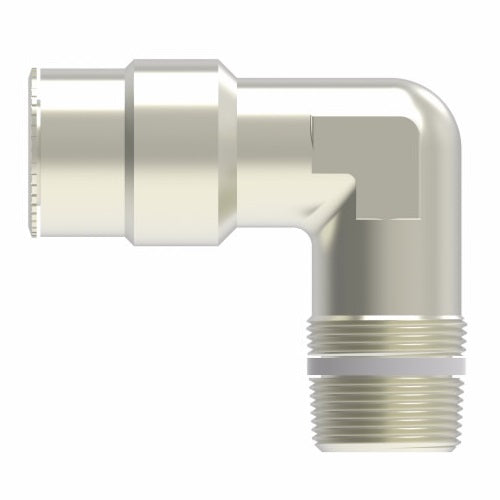

1169X4MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

1169X4MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 4mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

$7.48 - $7.48
$7.48
$7.48 - $7.48
$7.48

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector (Universal BSPT/BSPP)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1169X4MX2PT Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 4mm Push-to-Connect, 1/8in Male BSPT
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread Size		 C E F H M SW
(mm)
1169X4MX2PT 4mm 1/8" 3.5mm 8.5mm 9.0mm 7.5mm 17.5mm 8mm
1169X4MX4PT 4mm 1/4" 6.0mm 11.5mm 10.0mm 12mm 20.0mm 9mm
1169X5MX2PT 5mm 1/8" 6.0mm 9.5mm 11.0mm 7.5mm 21.0mm 9mm
1169X5MX4PT 5mm 1/4" 6.0mm 10.5mm 11.0mm 11.0mm 21.0mm 9mm
1169X6MX2PT 6mm 1/8" 4.0mm 9.0mm 12.7mm 7.5mm 20.0mm 9mm
1169X8MX2PT 8mm 1/8" 5.0mm 10.5mm 14.0mm 7.5mm 22.5mm 11mm
1169X8MX4PT 8mm 1/4" 5.0mm 11.5mm 14.0mm 12.5mm 22.5mm 11mm
1169X8MX6PT 8mm 3/8" 7.5mm 13.0mm 15.0mm 11.5mm 25.0mm 12mm
1169X10MX4PT 10mm 1/4" 6.5mm 13.0mm 16.5mm 12mm 26.5mm 13mm
1169X10MX6PT 10mm 3/8" 6.5mm 12.5mm 16.5mm 11.5mm 26.5mm 13mm
1169X12MX4PT 12mm 1/4" 7.5mm 14.5mm 19.5mm 12mm 28.5mm 15mm
1169X12MX6PT 12mm 3/8" 7.5mm 14.5mm 19.5mm 12.5mm 28.5mm 15mm
