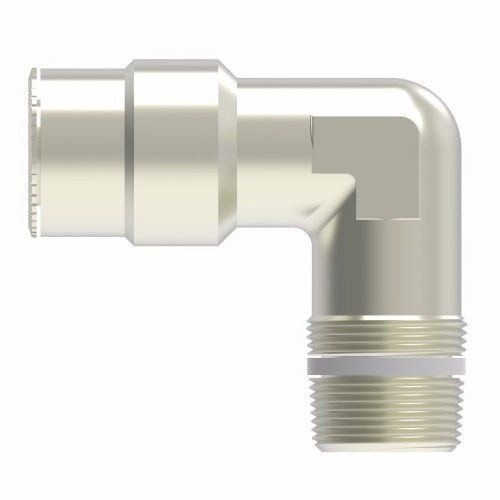

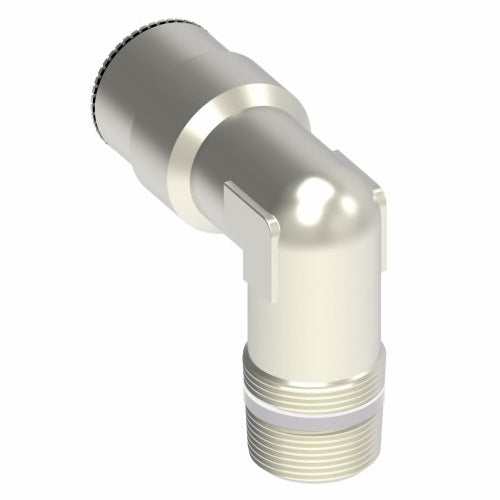

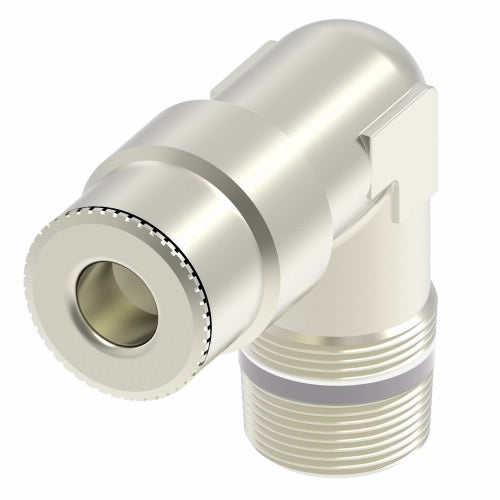

1169X5MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 5mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass
1169X5MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 5mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass
1169X5MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 5mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass
1169X5MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 5mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

1169X5MX2PT by Danfoss | Metric Push to Connect Adapter | Male Connector 90° Elbow (Universal BSPT/BSPP) | 5mm Tube OD x 1/8" Male BSPT | Nickel Plated Brass

$16.18 - $16.18
$16.18
$16.18 - $16.18
$16.18

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector (Universal BSPT/BSPP)
Specifications for Variant SKU: 1169X5MX2PT Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5mm Push-to-Connect, 1/8in Male BSPT
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread Size		 C E F H M SW
(mm)
1169X4MX2PT 4mm 1/8" 3.5mm 8.5mm 9.0mm 7.5mm 17.5mm 8mm
1169X4MX4PT 4mm 1/4" 6.0mm 11.5mm 10.0mm 12mm 20.0mm 9mm
1169X5MX2PT 5mm 1/8" 6.0mm 9.5mm 11.0mm 7.5mm 21.0mm 9mm
1169X5MX4PT 5mm 1/4" 6.0mm 10.5mm 11.0mm 11.0mm 21.0mm 9mm
1169X6MX2PT 6mm 1/8" 4.0mm 9.0mm 12.7mm 7.5mm 20.0mm 9mm
1169X8MX2PT 8mm 1/8" 5.0mm 10.5mm 14.0mm 7.5mm 22.5mm 11mm
1169X8MX4PT 8mm 1/4" 5.0mm 11.5mm 14.0mm 12.5mm 22.5mm 11mm
1169X8MX6PT 8mm 3/8" 7.5mm 13.0mm 15.0mm 11.5mm 25.0mm 12mm
1169X10MX4PT 10mm 1/4" 6.5mm 13.0mm 16.5mm 12mm 26.5mm 13mm
1169X10MX6PT 10mm 3/8" 6.5mm 12.5mm 16.5mm 11.5mm 26.5mm 13mm
1169X12MX4PT 12mm 1/4" 7.5mm 14.5mm 19.5mm 12mm 28.5mm 15mm
1169X12MX6PT 12mm 3/8" 7.5mm 14.5mm 19.5mm 12.5mm 28.5mm 15mm
