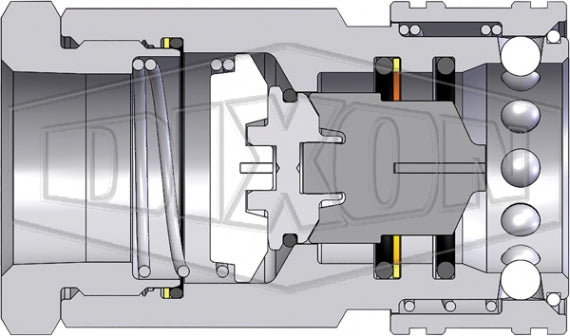

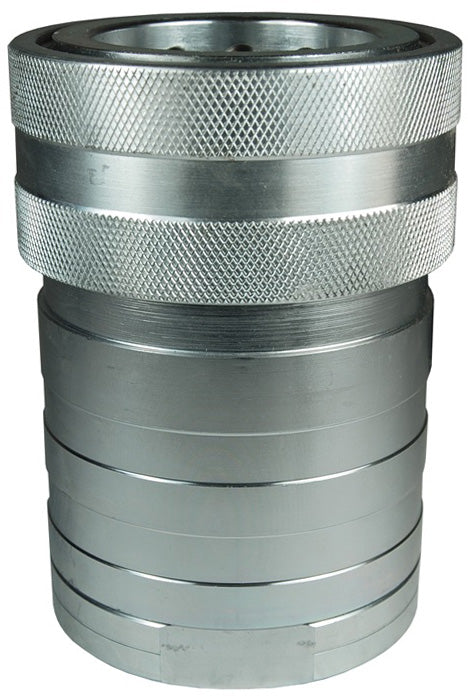

12HF12 by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1-1/2" Female NPTF x 1-1/2" ISO-B High Volume Interchange | Socket | Nitrile Seal | Steel

Save $23.46

$211.14

$211.14 - $211.14

$211.14

$187.68

$187.68 - $187.68

$187.68

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B High Volume Interchange Coupler (Female Threads)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 12HF12 Dixon
Series:	H-Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female ISO-B QD Interchange, 1-1/2in Female NPTF
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Meets dimensional requirements of ISO 7241 Series B Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:	Machined components are manufactured using solid steel, brass, 303 Stainless steel, or 316 Stainless steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Steel plugs are hardened to provide heavy-duty performance and resist brinelling.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). 1/8" to 1" couplers have a redundant O-ring sealing system with PTFE backup ring. 1-1/4" to 2-1/2" have a Hytrel backup ring. 1/4" to 1" valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Features:	Poppet style shut-off valves Designed to prevent fluid loss when disconnected.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

H-Series \| High Volume ISO-B Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Opertaing Pressure	Burst Pressure
10HF10	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Steel	4.43" (112.5mm)	2.60" (66.0mm)	2-3/8"	2500 PSI (170 bar)	10000 PSI (700 bar)
10HF10-B	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Brass	4.43" (112.5mm)	2.60" (66.0mm)	2-3/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
10HF10-S	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPTF	303 Stainless	4.43" (112.5mm)	2.60" (66.0mm)	2-3/8"	2000 PSI (138 bar)	10000 PSI (700 bar)
10HBF10	Socket/Female	1-1/4"	1-1/4" - 11 Female BSPP	Steel	4.43" (112.5mm)	2.60" (66.0mm)	2-3/8"	2500 PSI (170 bar)	10000 PSI (700 bar)
12HF10	Socket/Female	1-1/2"	1-1/4" - 11-1/2 Female NPTF	Steel	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
12HF10-B	Socket/Female	1-1/2"	1-1/4" - 11-1/2 Female NPTF	Brass	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
12HF10-S	Socket/Female	1-1/2"	1-1/4" - 11-1/2 Female NPTF	303 Stainless	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
12HOF10	Socket/Female	1-1/2"	1-5/8" - 12 Female ORB	Steel	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	-	-
12HF12	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
12HF12-B	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Brass	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
12HF12-S	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	303 Stainless	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
12HF12-SS	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	316 Stainless	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1000 PSI (70 bar)	7000 PSI (480 bar)
12HBF12	Socket/Female	1-1/2"	1-1/2" - 11 Female BSPP	Steel	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
12HBF12-B	Socket/Female	1-1/2"	1-1/2" - 11 Female BSPP	Brass	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
12HBF12-S	Socket/Female	1-1/2"	1-1/2" - 11 Female BSPP	303 Stainless	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
12HBF12	Socket/Female	1-1/2"	1-1/2" - 11 Female BSPP	316 Stainless	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	1000 PSI (70 bar)	7000 PSI (480 bar)
12HOF12	Socket/Female	1-1/2"	1-7/8" - 12 Female ORB	Steel	4.81" (122.2mm)	3.00" (76.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
20HF16	Socket/Female	2-1/2"	2" - 11-1/2 Female NPTF	Steel	5.57" (141.5mm)	4.10" (104.1mm)	3-3/4"	1500 PSI (100 bar)	6000 PSI (400 bar)
20HF16-B	Socket/Female	2-1/2"	2" - 11-1/2 Female NPTF	Brass	5.57" (141.5mm)	4.10" (104.1mm)	3-3/4"	700 PSI (50 bar)	5500 PSI (380 bar)
20HF20	Socket/Female	2-1/2"	2-1/2" - 8 Female NPTF	Steel	6.04" (153.4mm)	4.10" (104.1mm)	3-3/4"	1500 PSI (100 bar)	6000 PSI (400 bar)
20HF24	Socket/Female	2-1/2"	3" - 8 Female NPTF	Steel	6.96" (176.8mm)	4.35" (110.5mm)	4"	1500 PSI (100 bar)	6000 PSI (400 bar)

H-Series \| High Volume ISO-B Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Opertaing Pressure	Burst Pressure
H10F10	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Steel	4.25" (108.0mm)	2.60" (66.0mm)	2-3/8"	2500 PSI (170 bar)	10000 PSI (700 bar)
H10F10-B	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Brass	4.25" (108.0mm)	2.60" (66.0mm)	2-3/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
H10F10-S	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	303 Stainless	4.25" (108.0mm)	2.60" (66.0mm)	2-3/8"	2000 PSI (138 bar)	10000 PSI (700 bar)
H10F10-SS	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	316 Stainless	4.25" (108.0mm)	2.60" (66.0mm)	2-3/8"	1000 PSI (70 bar)	8500 PSI (580 bar)
H10BF10	Plug/Male	1-1/4"	1-1/4" - 11 Female BSPP	Steel	4.25" (108.0mm)	2.60" (66.0mm)	2-3/8"	2500 PSI (170 bar)	10000 PSI (700 bar)
H12F10	Plug/Male	1-1/2"	1-1/4" - 11-1/2 Female NPTF	Steel	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
H12F10-B	Plug/Male	1-1/2"	1-1/4" - 11-1/2 Female NPTF	Brass	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
H12F10-S	Plug/Male	1-1/2"	1-1/4" - 11-1/2 Female NPTF	303 Stainless	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
H12OF10	Plug/Male	1-1/2"	1-5/8" - 12 Female ORB	Steel	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
H12F12	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
H12F12-B	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Brass	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
H12F12-S	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	303 Stainless	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
H12F12-SS	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	316 Stainless	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1000 PSI (70 bar)	7000 PSI (480 bar)
H12BF12	Plug/Male	1-1/2"	1-1/2" - 11 Female BSPP	Steel	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
H12BF12-B	Plug/Male	1-1/2"	1-1/2" - 11 Female BSPP	Brass	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1000 PSI (70 bar)	6500 PSI (450 bar)
H12BF12-S	Plug/Male	1-1/2"	1-1/2" - 11 Female BSPP	303 Stainless	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
H12BF12	Plug/Male	1-1/2"	1-1/2" - 11 Female BSPP	316 Stainless	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	1000 PSI (70 bar)	7000 PSI (480 bar)
H12OF12	Plug/Male	1-1/2"	1-7/8" - 12 Female ORB	Steel	4.76" (120.9mm)	2.88" (73.2mm)	2-5/8"	2500 PSI (170 bar)	12500 PSI (850 bar)
H20F16	Plug/Male	2-1/2"	2" - 11-1/2 Female NPTF	Steel	5.48" (139.2mm)	4.10" (104.1mm)	3-3/4"	1500 PSI (100 bar)	6000 PSI (400 bar)
H20F16-B	Plug/Male	2-1/2"	2" - 11-1/2 Female NPTF	Brass	5.48" (139.2mm)	4.10" (104.1mm)	3-3/4"	700 PSI (50 bar)	5500 PSI (380 bar)
H20F20	Plug/Male	2-1/2"	2-1/2" - 8 Female NPTF	Steel	5.95" (151.1mm)	4.10" (104.1mm)	3-3/4"	1500 PSI (100 bar)	6000 PSI (400 bar)
H20F24	Plug/Male	2-1/2"	3" - 8 Female NPTF	Steel	6.87" (174.5mm)	4.35" (110.5mm)	4"	1500 PSI (100 bar)	6000 PSI (400 bar)
