Dixon Valve & Coupling

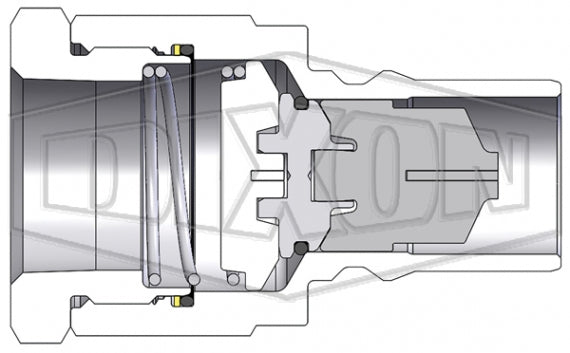

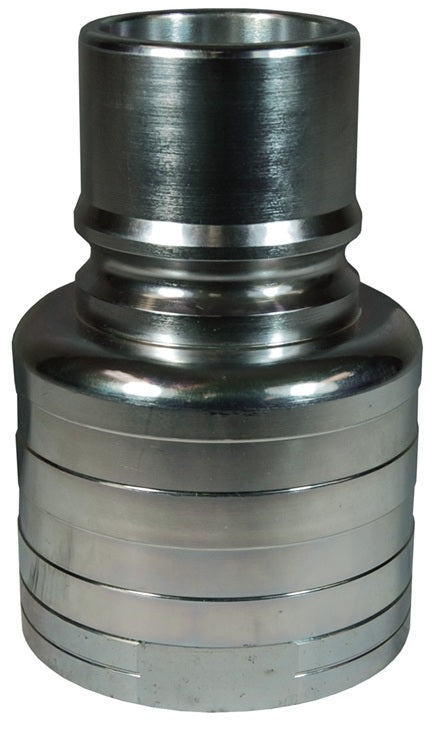

Hydraulic Coupling: H-Series ISO-B High Volume Interchange Plug (Female Threads)
Specifications for Variant SKU: H20F24 Dixon
Series: H-Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male ISO-B QD Interchange, 3in Female NPTF
Material(s): Steel
Compatibility & Interchange:
  • Meets dimensional requirements of ISO 7241 Series B
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:
  • Machined components are manufactured using solid steel, brass, 303 Stainless steel, or 316 Stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide heavy-duty performance and resist brinelling.
Features:
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected.
Additional Information:
H-Series | High Volume ISO-B Interchange Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Max. Opertaing
Pressure		 Burst
Pressure
H10F10 Plug/Male 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 Steel 4.25"
(108.0mm)		 2.60"
(66.0mm)		 2-3/8" 2500 PSI
(170 bar)		 10000 PSI
(700 bar)
H10F10-B Plug/Male 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 Brass 4.25"
(108.0mm)		 2.60"
(66.0mm)		 2-3/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
H10F10-S Plug/Male 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 303 Stainless 4.25"
(108.0mm)		 2.60"
(66.0mm)		 2-3/8" 2000 PSI
(138 bar)		 10000 PSI
(700 bar)
H10F10-SS Plug/Male 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 316 Stainless 4.25"
(108.0mm)		 2.60"
(66.0mm)		 2-3/8" 1000 PSI
(70 bar)		 8500 PSI
(580 bar)
H10BF10 Plug/Male 1-1/4" 1-1/4" - 11
Female BSPP		 Steel 4.25"
(108.0mm)		 2.60"
(66.0mm)		 2-3/8" 2500 PSI
(170 bar)		 10000 PSI
(700 bar)
H12F10 Plug/Male 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 Steel 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
H12F10-B Plug/Male 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 Brass 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
H12F10-S Plug/Male 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 303 Stainless 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
H12OF10 Plug/Male 1-1/2" 1-5/8" - 12
Female ORB		 Steel 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
H12F12 Plug/Male 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 Steel 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
H12F12-B Plug/Male 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 Brass 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
H12F12-S Plug/Male 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 303 Stainless 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
H12F12-SS Plug/Male 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 316 Stainless 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1000 PSI
(70 bar)		 7000 PSI
(480 bar)
H12BF12 Plug/Male 1-1/2" 1-1/2" - 11
Female BSPP		 Steel 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
H12BF12-B Plug/Male 1-1/2" 1-1/2" - 11
Female BSPP		 Brass 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
H12BF12-S Plug/Male 1-1/2" 1-1/2" - 11
Female BSPP		 303 Stainless 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
H12BF12 Plug/Male 1-1/2" 1-1/2" - 11
Female BSPP		 316 Stainless 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 1000 PSI
(70 bar)		 7000 PSI
(480 bar)
H12OF12 Plug/Male 1-1/2" 1-7/8" - 12
Female ORB		 Steel 4.76"
(120.9mm)		 2.88"
(73.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
H20F16 Plug/Male 2-1/2" 2" - 11-1/2
Female NPTF		 Steel 5.48"
(139.2mm)		 4.10"
(104.1mm)		 3-3/4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
H20F16-B Plug/Male 2-1/2" 2" - 11-1/2
Female NPTF		 Brass 5.48"
(139.2mm)		 4.10"
(104.1mm)		 3-3/4" 700 PSI
(50 bar)		 5500 PSI
(380 bar)
H20F20 Plug/Male 2-1/2" 2-1/2" - 8
Female NPTF		 Steel 5.95"
(151.1mm)		 4.10"
(104.1mm)		 3-3/4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
H20F24 Plug/Male 2-1/2" 3" - 8
Female NPTF		 Steel 6.87"
(174.5mm)		 4.35"
(110.5mm)		 4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
H-Series | High Volume ISO-B Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Opertaing
Pressure		 Burst
Pressure
10HF10 Socket/Female 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 Steel 4.43"
(112.5mm)		 2.60"
(66.0mm)		 2-3/8" 2500 PSI
(170 bar)		 10000 PSI
(700 bar)
10HF10-B Socket/Female 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 Brass 4.43"
(112.5mm)		 2.60"
(66.0mm)		 2-3/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
10HF10-S Socket/Female 1-1/4" 1-1/4" - 11-1/2
Female NPTF		 303 Stainless 4.43"
(112.5mm)		 2.60"
(66.0mm)		 2-3/8" 2000 PSI
(138 bar)		 10000 PSI
(700 bar)
10HBF10 Socket/Female 1-1/4" 1-1/4" - 11
Female BSPP		 Steel 4.43"
(112.5mm)		 2.60"
(66.0mm)		 2-3/8" 2500 PSI
(170 bar)		 10000 PSI
(700 bar)
12HF10 Socket/Female 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 Steel 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
12HF10-B Socket/Female 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 Brass 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
12HF10-S Socket/Female 1-1/2" 1-1/4" - 11-1/2
Female NPTF		 303 Stainless 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
12HOF10 Socket/Female 1-1/2" 1-5/8" - 12
Female ORB		 Steel 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" - -
12HF12 Socket/Female 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 Steel 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
12HF12-B Socket/Female 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 Brass 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
12HF12-S Socket/Female 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 303 Stainless 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
12HF12-SS Socket/Female 1-1/2" 1-1/2" - 11-1/2
Female NPTF		 316 Stainless 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1000 PSI
(70 bar)		 7000 PSI
(480 bar)
12HBF12 Socket/Female 1-1/2" 1-1/2" - 11
Female BSPP		 Steel 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
12HBF12-B Socket/Female 1-1/2" 1-1/2" - 11
Female BSPP		 Brass 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1000 PSI
(70 bar)		 6500 PSI
(450 bar)
12HBF12-S Socket/Female 1-1/2" 1-1/2" - 11
Female BSPP		 303 Stainless 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
12HBF12 Socket/Female 1-1/2" 1-1/2" - 11
Female BSPP		 316 Stainless 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 1000 PSI
(70 bar)		 7000 PSI
(480 bar)
12HOF12 Socket/Female 1-1/2" 1-7/8" - 12
Female ORB		 Steel 4.81"
(122.2mm)		 3.00"
(76.2mm)		 2-5/8" 2500 PSI
(170 bar)		 12500 PSI
(850 bar)
20HF16 Socket/Female 2-1/2" 2" - 11-1/2
Female NPTF		 Steel 5.57"
(141.5mm)		 4.10"
(104.1mm)		 3-3/4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
20HF16-B Socket/Female 2-1/2" 2" - 11-1/2
Female NPTF		 Brass 5.57"
(141.5mm)		 4.10"
(104.1mm)		 3-3/4" 700 PSI
(50 bar)		 5500 PSI
(380 bar)
20HF20 Socket/Female 2-1/2" 2-1/2" - 8
Female NPTF		 Steel 6.04"
(153.4mm)		 4.10"
(104.1mm)		 3-3/4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
20HF24 Socket/Female 2-1/2" 3" - 8
Female NPTF		 Steel 6.96"
(176.8mm)		 4.35"
(110.5mm)		 4" 1500 PSI
(100 bar)		 6000 PSI
(400 bar)
