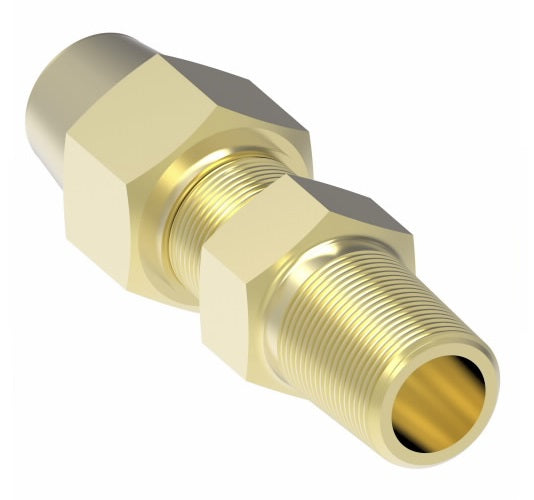

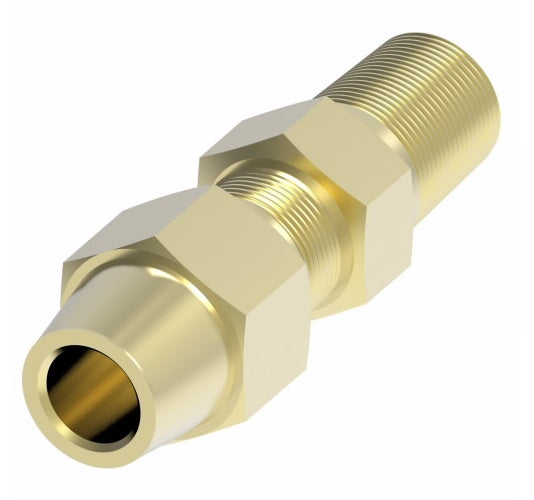

1368X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector | 5/8" Tube OD x 1/2" Male Pipe | Brass
1368X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector | 5/8" Tube OD x 1/2" Male Pipe | Brass
1368X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector | 5/8" Tube OD x 1/2" Male Pipe | Brass
1368X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector | 5/8" Tube OD x 1/2" Male Pipe | Brass

1368X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector | 5/8" Tube OD x 1/2" Male Pipe | Brass

$16.85 - $16.85
$16.85
$16.85 - $16.85
$16.85

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector
Specifications for Variant SKU: 1368X10 Danfoss
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120102BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
with Sealant
Part Number 		Brass
Body Only
Part Number 		Brass
Body Only
with Sealant
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D D1 L
1368X4 1368X4Z B1368X4 - 1/4" 1/8" 7/16" 0.188" 0.188" 0.88"
1368X4X4 1368X4X4Z B1368X4X4 - 1/4" 1/4" 9/16" 0.188" 0.188" 1.09"
1368X6X2 - B1368X6X2 - 3/8" 1/8" 9/16" 0.312" 0.188" 1.02"
1368X6 - - B1368X6Z 3/8" 1/4" 9/16" 0.312" 0.312" 1.20"
1368X6X6 - B1368X6X6 B1368X6X6Z 3/8" 3/8" 11/16" 0.312" 0.406" opt. 1.23"
1368X6X8 - B1368X6X8 - 3/8" 1/2" 7/8" 0.312" 0.531" opt. 1.42"
1368X8X4 - B1368X8X4 - 1/2" 1/4" 11/16" 0.406" 0.312" 1.32"
1368X8 - B1368X8 - 1/2" 3/8" 11/16" 0.406" 0.406" 1.32"
1368X8X8 - B1368X8X8 - 1/2" 1/2" 7/8" 0.406" .531" opt 1.51"
1368X10X6 - B1368X10X6 - 5/8" 3/8" 13/16" 0.531" 0.406" 1.38"
1368X10 - B1368X10 B1368X10Z 5/8" 1/2" 7/8" 0.531" 0.531" 1.57
1368X12 - B1368X12 - 3/4" 1/2" 1" 0.656" 0.531" 1.67"
1368X12X12 - B1368X12X12 - 3/4" 3/4" 1-1/16" 0.656" 0.719" opt. 1.70"
