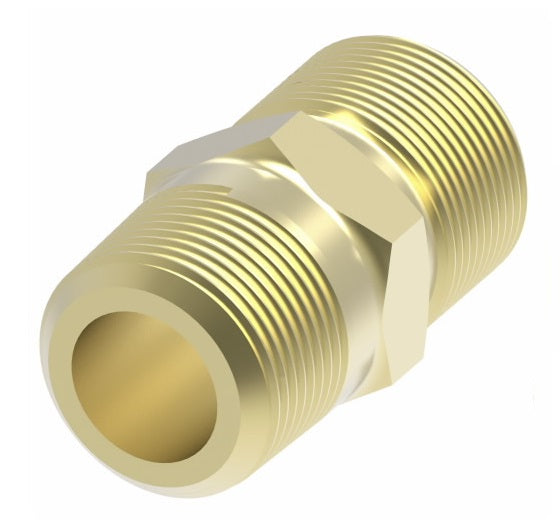

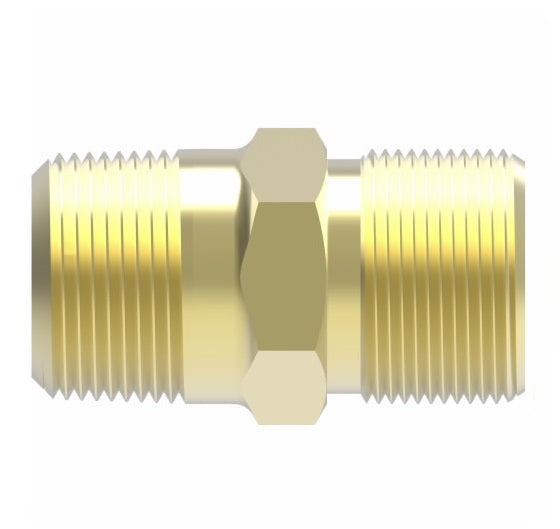

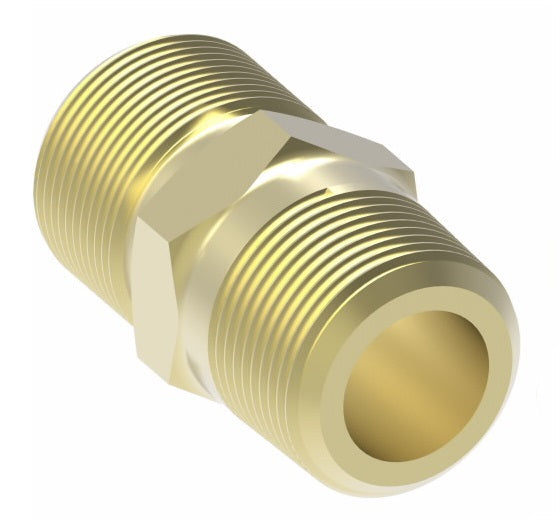

B1368X10Z by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector (Body Only) (with Sealant)| 5/8" Tube OD x 1/2" Male Pipe | Brass

B1368X10Z by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector (Body Only) (with Sealant) | 5/8" Tube OD x 1/2" Male Pipe | Brass

Name: B1368X10Z by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector (Body Only) (with Sealant) | 5/8" Tube OD x 1/2" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: B1368X10Z Danfoss
Price: 18.04 USD
Availability: InStock

$18.04 - $18.04

$18.04

$18.04 - $18.04

$18.04

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector

Specifications for Variant SKU: B1368X10Z Danfoss
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120102BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass with Sealant Part Number	Brass Body Only Part Number	Brass Body Only with Sealant Part Number	Tube O.D.	Male Pipe Thread	Hex C	D	D1	L
1368X4	1368X4Z	B1368X4	-	1/4"	1/8"	7/16"	0.188"	0.188"	0.88"
1368X4X4	1368X4X4Z	B1368X4X4	-	1/4"	1/4"	9/16"	0.188"	0.188"	1.09"
1368X6X2	-	B1368X6X2	-	3/8"	1/8"	9/16"	0.312"	0.188"	1.02"
1368X6	-	-	B1368X6Z	3/8"	1/4"	9/16"	0.312"	0.312"	1.20"
1368X6X6	-	B1368X6X6	B1368X6X6Z	3/8"	3/8"	11/16"	0.312"	0.406" opt.	1.23"
1368X6X8	-	B1368X6X8	-	3/8"	1/2"	7/8"	0.312"	0.531" opt.	1.42"
1368X8X4	-	B1368X8X4	-	1/2"	1/4"	11/16"	0.406"	0.312"	1.32"
1368X8	-	B1368X8	-	1/2"	3/8"	11/16"	0.406"	0.406"	1.32"
1368X8X8	-	B1368X8X8	-	1/2"	1/2"	7/8"	0.406"	.531" opt	1.51"
1368X10X6	-	B1368X10X6	-	5/8"	3/8"	13/16"	0.531"	0.406"	1.38"
1368X10	-	B1368X10	B1368X10Z	5/8"	1/2"	7/8"	0.531"	0.531"	1.57
1368X12	-	B1368X12	-	3/4"	1/2"	1"	0.656"	0.531"	1.67"
1368X12X12	-	B1368X12X12	-	3/4"	3/4"	1-1/16"	0.656"	0.719" opt.	1.70"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
