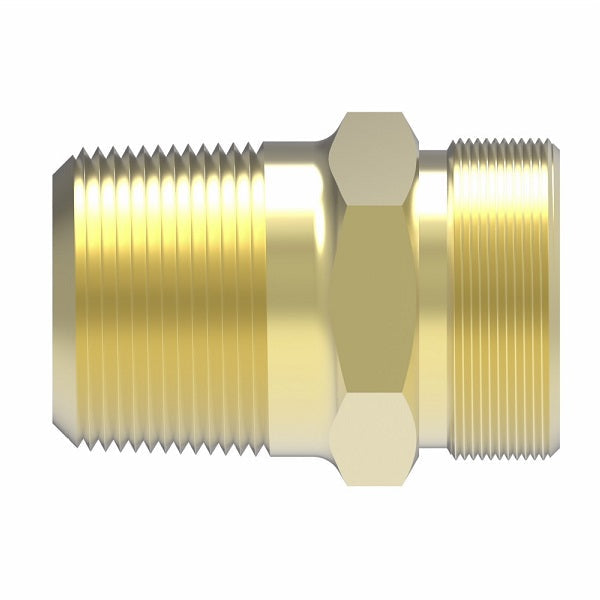

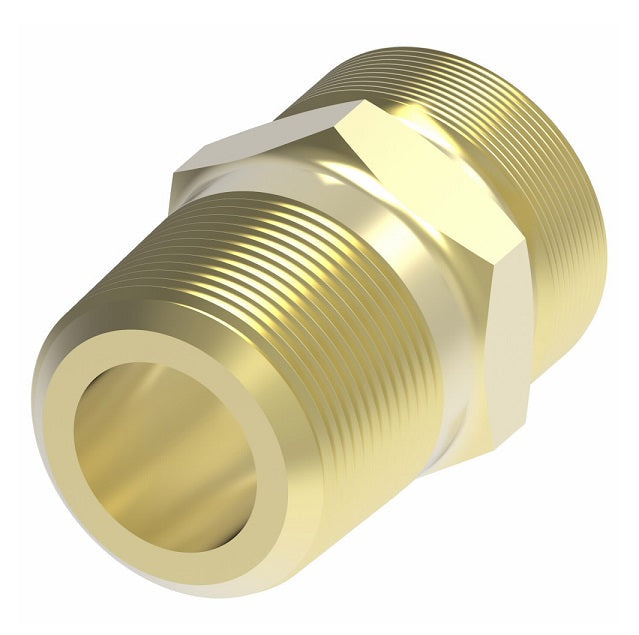

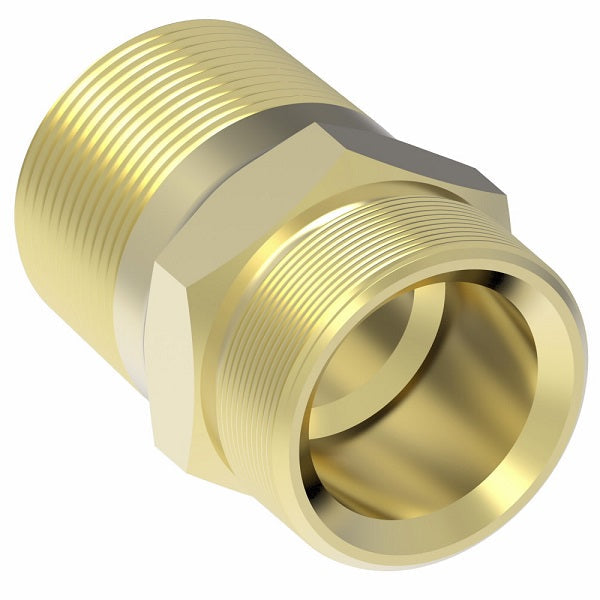

1390X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -06 Male NPTF | Brass
1390X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -06 Male NPTF | Brass
1390X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -06 Male NPTF | Brass
1390X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -06 Male NPTF | Brass

1390X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -06 Male NPTF | Brass

$4.08 - $4.08
$4.08
$4.08 - $4.08
$4.08

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Adapter - Male UNF x -04 Male NPTF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Specifications for Variant SKU: 1390X8 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number ABS Thread Size Pipe Size Overall Length ABS Thread Size Hex
1390X6 3/8" 1/4" 1.18" 3/4-20 3/4"
1390X6X6 3/8" 3/8" 1.18" 3/4-20 3/4"
1390X6X8 3/8" 1/2" 1.37" 3/4-20 7/8"
1390X8 1/2" 3/8" 1.18" 7/8-20 7/8"
1390X8X8 1/2" 1/2" 1.37" 7/8-20 7/8"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
