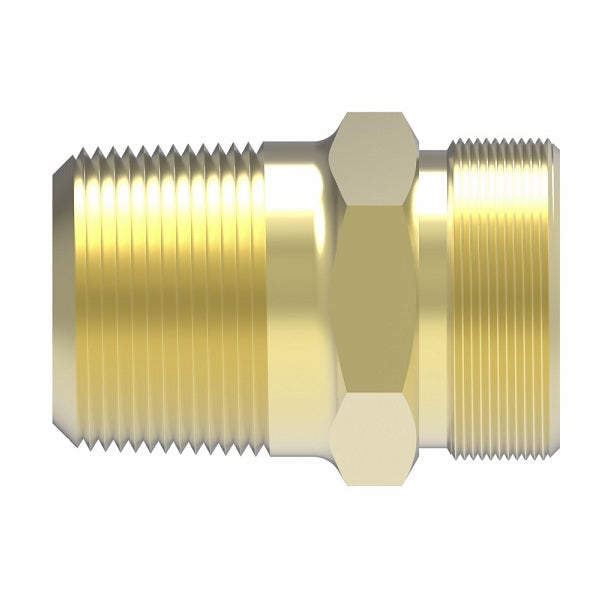

1390X8X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -08 Male NPTF | Brass
1390X8X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -08 Male NPTF | Brass
1390X8X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -08 Male NPTF | Brass
1390X8X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -08 Male NPTF | Brass

1390X8X8 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 1/2" Male UNF x -08 Male NPTF | Brass

$9.54 - $9.54
$9.54
$9.54 - $9.54
$9.54

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Adapter - Male UNF x -04 Male NPTF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Specifications for Variant SKU: 1390X8X8 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number ABS Thread Size Pipe Size Overall Length ABS Thread Size Hex
1390X6 3/8" 1/4" 1.18" 3/4-20 3/4"
1390X6X6 3/8" 3/8" 1.18" 3/4-20 3/4"
1390X6X8 3/8" 1/2" 1.37" 3/4-20 7/8"
1390X8 1/2" 3/8" 1.18" 7/8-20 7/8"
1390X8X8 1/2" 1/2" 1.37" 7/8-20 7/8"

Note: Drawings may differ from actual parts.
