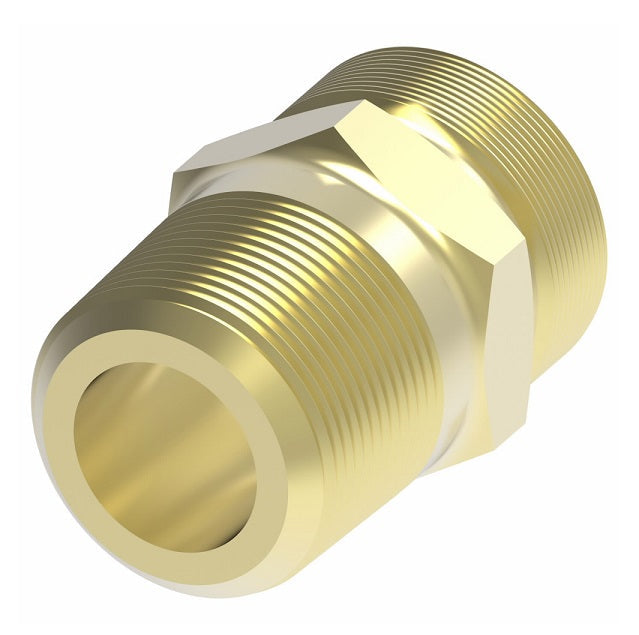

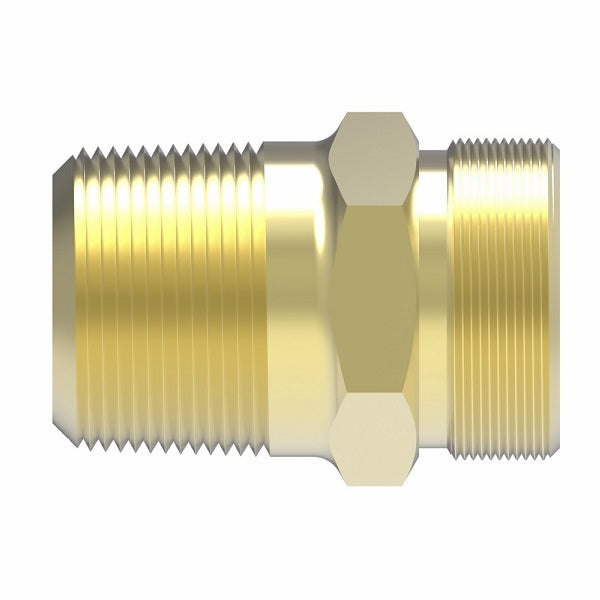

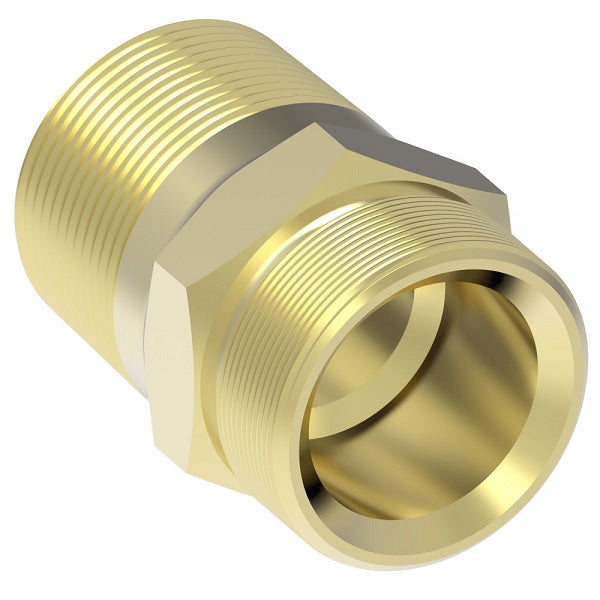

1390X6X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -06 Male NPTF | Brass

1390X6X6 Weatherhead by Danfoss | Adapter Field Attachable Fitting | 338 'B' Series DOT | 3/8" Male UNF x -06 Male NPTF | Brass

$3.43 - $3.43
$3.43
$3.43 - $3.43
$3.43

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Adapter - Male UNF x -04 Male NPTF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1390X6X6 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number ABS Thread Size Pipe Size Overall Length ABS Thread Size Hex
1390X6 3/8" 1/4" 1.18" 3/4-20 3/4"
1390X6X6 3/8" 3/8" 1.18" 3/4-20 3/4"
1390X6X8 3/8" 1/2" 1.37" 3/4-20 7/8"
1390X8 1/2" 3/8" 1.18" 7/8-20 7/8"
1390X8X8 1/2" 1/2" 1.37" 7/8-20 7/8"

Note: Drawings may differ from actual parts.
