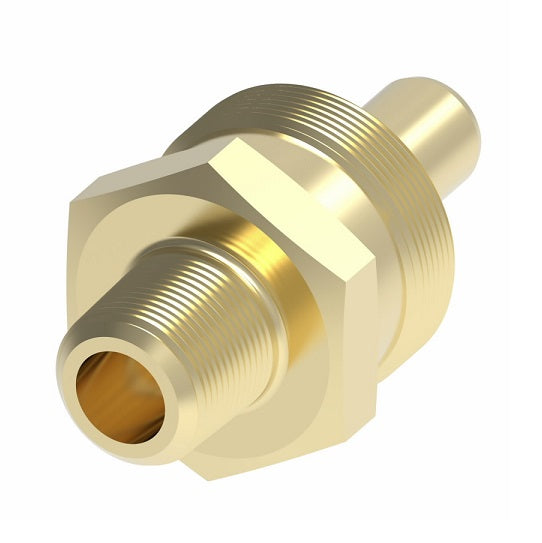

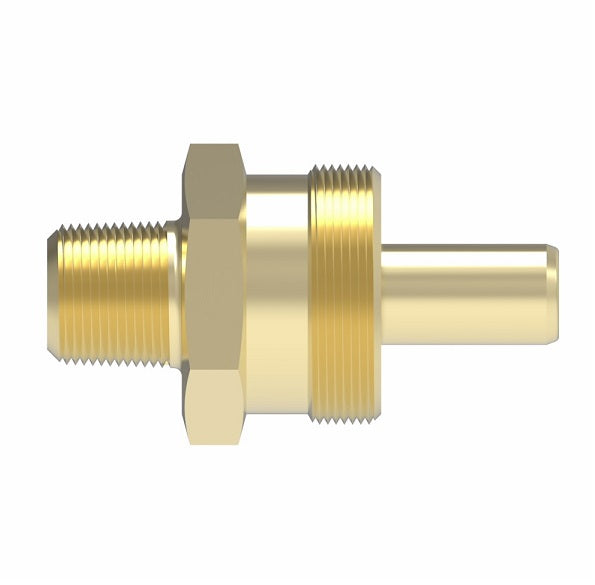

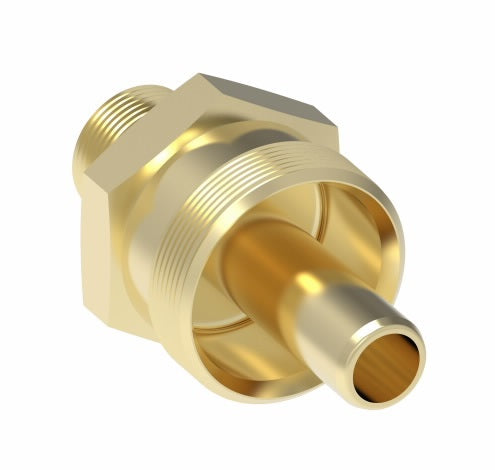

1391X6 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -04 Male NPTF -06 Reusable Hose End | Brass

Name: 1391X6 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -04 Male NPTF -06 Reusable Hose End | Brass
Brand: Danfoss/Eaton
SKU: 1391X6 Danfoss
Price: 7.54 USD
Availability: InStock

$7.54 - $7.54

$7.54

$7.54 - $7.54

$7.54

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Insert (Body Only) - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1391X6 Danfoss

Shape (Orientation):

Straight

Ends Configuration:

1/4in Male NPTF X 3/8in Reusable Hose End

Material(s):

Brass

Compatible with the following Series:

EC038 Series

Notes:

Pressure: Determined by maximum working pressure for hose size.
Parts are stamped with DOT.
Label Set: FS-800
To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.

Material:

CA360 Brass

Compatible Hose:

EC038

Assembly instructions:

1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
2. Push hose into Fitting until it bottoms.
3. Screw nut until contact is made with body hex.

Part Number
Brass

Hose I.D.

Pipe Size

Hole Diameter

1391X6

3/8"

1/4"

.281

1391X6X6

3/8"

.281

1391X6X8

3/8"

1/2"

.281

1391X8

1/2"

3/8"

.390

1391X8X8

1/2"

.390

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)

1391X6 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -04 Male NPTF -06 Reusable Hose End | Brass

Danfoss (Eaton - Aeroquip)

Added to your cart:

Compare products

Notes:
Pressure: Determined by maximum working pressure for hose size. Parts are stamped with DOT. Label Set: FS-800 To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
CA360 Brass
Compatible Hose:
EC038
Assembly instructions:
1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting. 2. Push hose into Fitting until it bottoms. 3. Screw nut until contact is made with body hex.
