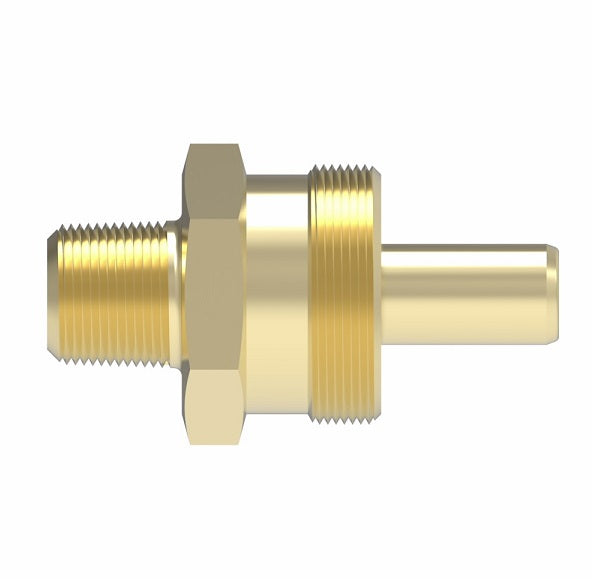

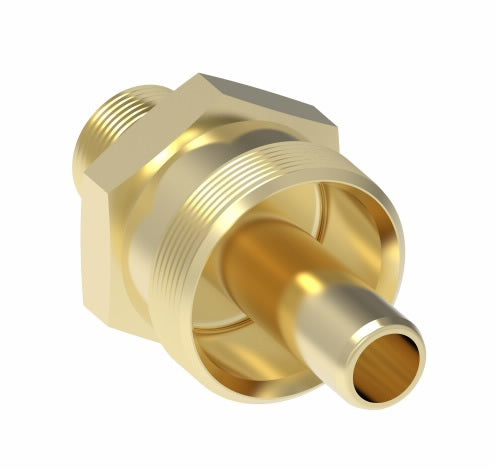

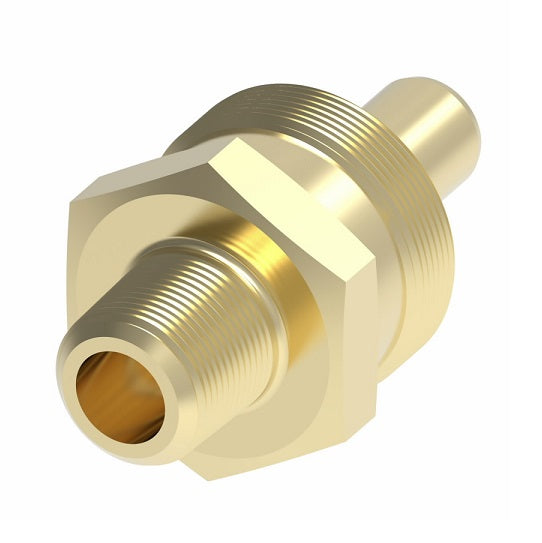

1391X8X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -08 Reusable Hose End | Brass
1391X8X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -08 Reusable Hose End | Brass
1391X8X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -08 Reusable Hose End | Brass
1391X8X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -08 Reusable Hose End | Brass

1391X8X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -08 Reusable Hose End | Brass

$13.28 - $13.28
$13.28
$13.28 - $13.28
$13.28

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Insert (Body Only) - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Specifications for Variant SKU: 1391X8X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Reusable Hose End
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number
Brass		 Hose I.D. Pipe Size Hole Diameter
1391X6 3/8" 1/4" .281
1391X6X6 3/8" 3/8" .281
1391X6X8 3/8" 1/2" .281
1391X8 1/2" 3/8" .390
1391X8X8 1/2" 1/2" .390

Note: Drawings may differ from actual parts.
