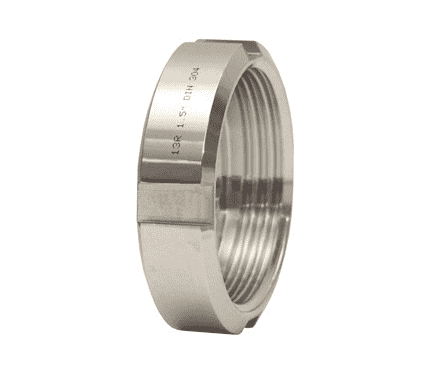

13R-G100DIN Dixon Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 1" Tube OD - 25 DN Size

13R-G100DIN Dixon Valve Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 1" Tube OD - 25 DN Size

Name: 13R-G100DIN Dixon Valve Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 1" Tube OD - 25 DN Size
Brand: Dixon
SKU: 13R-G100DIN Dixon
Price: 17.53 USD
Availability: InStock

Save $11.69

$29.22

$29.22 - $29.22

$29.22

$17.53

$17.53 - $17.53

$17.53

Dixon's Bradford™ Sanitary European Fittings - DIN Round Nuts (DIN11857) - 304 Stainless Steel

Specifications for Variant SKU: 13R-G100DIN Dixon
Shape (Orientation):	No Orientation
Material(s):	304 Stainless Steel

Features:
DIN 11851

Part Number	Tube OD	DN Size	Dimensions			Weight (Lbs.)
Part Number	Tube OD	DN Size	A	B	C	Weight (Lbs.)
13R-G100DIN	1"	25	.83"	2.48"	2.05"	0.1500
13R-G150DIN	1-1/2"	40	.83"	3.07"	2.56"	0.2300
13R-G200DIN	2"	50	.87"	3.62"	3.07"	0.4000
13R-G250DIN	2-1/2"	65	.98"	4.41"	3.74"	0.5000
13R-G300DIN	3"	80	1.14"	5.00"	4.33"	0.6500
13R-G400DIN	4"	100	1.22"	5.83"	5.12"	1.0000
