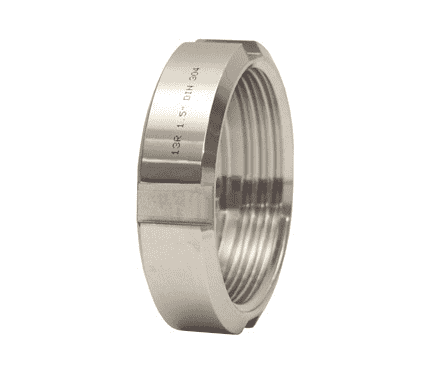

13R-G300DIN Dixon Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 3" Tube OD - 80 DN Size

13R-G300DIN Dixon Valve Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 3" Tube OD - 80 DN Size

Save $33.95 Save $33.95
$84.88
$84.88 - $84.88
$84.88
$50.93
$50.93 - $50.93
$50.93

Dixon's Bradford™ Sanitary European Fittings - DIN Round Nuts (DIN11857) - 304 Stainless Steel
Specifications for Variant SKU: 13R-G300DIN Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions
Weight
(Lbs.)
A B C
13R-G100DIN 1" 25 .83" 2.48" 2.05" 0.1500
13R-G150DIN 1-1/2" 40 .83" 3.07" 2.56" 0.2300
13R-G200DIN 2" 50 .87" 3.62" 3.07" 0.4000
13R-G250DIN 2-1/2" 65 .98" 4.41" 3.74" 0.5000
13R-G300DIN 3" 80 1.14" 5.00" 4.33" 0.6500
13R-G400DIN 4" 100 1.22" 5.83" 5.12" 1.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
