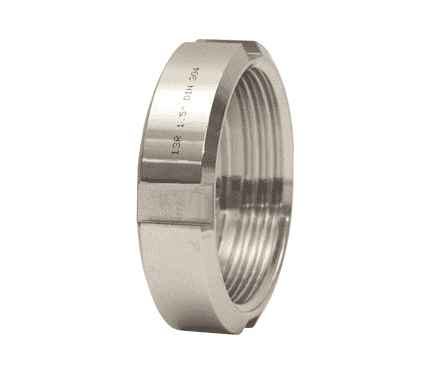

13R-G250DIN Dixon Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 2-1/2" Tube OD - 65 DN Size

13R-G250DIN Dixon Valve Bradford Sanitary European Fitting - 304 Stainless Steel DIN Round Nut (DIN11857) - 2-1/2" Tube OD - 65 DN Size

Save $23.97 Save $23.97
$59.92
$59.92 - $59.92
$59.92
$35.95
$35.95 - $35.95
$35.95

Dixon's Bradford™ Sanitary European Fittings - DIN Round Nuts (DIN11857) - 304 Stainless Steel
Specifications for Variant SKU: 13R-G250DIN Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions
Weight
(Lbs.)
A B C
13R-G100DIN 1" 25 .83" 2.48" 2.05" 0.1500
13R-G150DIN 1-1/2" 40 .83" 3.07" 2.56" 0.2300
13R-G200DIN 2" 50 .87" 3.62" 3.07" 0.4000
13R-G250DIN 2-1/2" 65 .98" 4.41" 3.74" 0.5000
13R-G300DIN 3" 80 1.14" 5.00" 4.33" 0.6500
13R-G400DIN 4" 100 1.22" 5.83" 5.12" 1.0000
