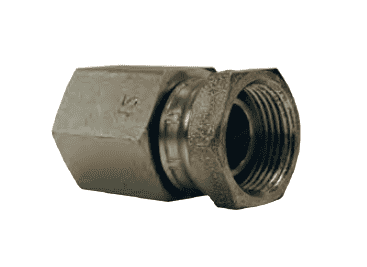

1405-24-24 Dixon Zinc Plated Steel 1-1/2"-11-1/2 Female NPTF x 1-1/2"-11-1/2 Female NPSM Swivel Nut

1405-24-24 Dixon Valve Zinc Plated Steel 1-1/2"-11-1/2 Female NPTF x 1-1/2"-11-1/2 Female NPSM Swivel Nut

Save $3.10 Save $3.10
$27.87
$27.87 - $27.87
$27.87
$24.77
$24.77 - $24.77
$24.77

NPT Fittings - Female NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1405-24-24 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPTF, 1-1/2in Female NPSM
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Female NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1405-2-2 1/8"-27 1/8"-27 5000 PSI 0.0500
1405-4-4 1/4"-18 1/4"-18 4500 PSI 0.1000
1405-6-4 3/8"-18 1/4"-18 4000 PSI 0.1400
1405-6-6 3/8"-18 3/8"-18 4000 PSI 0.1600
1405-6-8 3/8"-18 1/2"-14 4000 PSI 0.2600
1405-8-8 1/2"-14 1/2"-14 3000 PSI 0.2200
1405-12-8 3/4"-14 1/2"-14 2500 PSI 0.2800
1405-12-12 3/4"-14 3/4"-14 2500 PSI 0.3505
1405-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.6000
1405-20-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 0.0800
1405-24-24 1-1/2"-11-1/2 1-1/2"-11-1/2 1000 PSI 1.0250
1405-32-32 2"-11-1/2 2"-11-1/2 1000 PSI 1.4850
