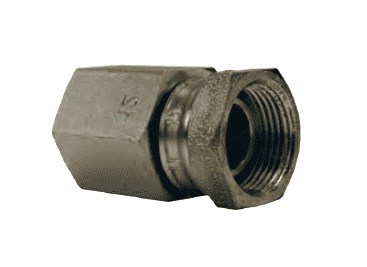

1405-32-32 Dixon Zinc Plated Steel 2"-11-1/2 Female NPTF x 2"-11-1/2 Female NPSM Swivel Nut

1405-32-32 Dixon Valve Zinc Plated Steel 2"-11-1/2 Female NPTF x 2"-11-1/2 Female NPSM Swivel Nut

Save $26.23 Save $26.23
$65.58
$65.58 - $65.58
$65.58
$39.35
$39.35 - $39.35
$39.35

NPT Fittings - Female NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1405-32-32 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Female NPSM, 2in Female NPSM, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Compact design provides ease of assembly in confining areas.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Female NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1405-2-2 1/8"-27 1/8"-27 5000 PSI 0.0500
1405-4-4 1/4"-18 1/4"-18 4500 PSI 0.1000
1405-6-4 3/8"-18 1/4"-18 4000 PSI 0.1400
1405-6-6 3/8"-18 3/8"-18 4000 PSI 0.1600
1405-6-8 3/8"-18 1/2"-14 4000 PSI 0.2600
1405-8-8 1/2"-14 1/2"-14 3000 PSI 0.2200
1405-12-8 3/4"-14 1/2"-14 2500 PSI 0.2800
1405-12-12 3/4"-14 3/4"-14 2500 PSI 0.3505
1405-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.6000
1405-20-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 0.0800
1405-24-24 1-1/2"-11-1/2 1-1/2"-11-1/2 1000 PSI 1.0250
1405-32-32 2"-11-1/2 2"-11-1/2 1000 PSI 1.4850
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
