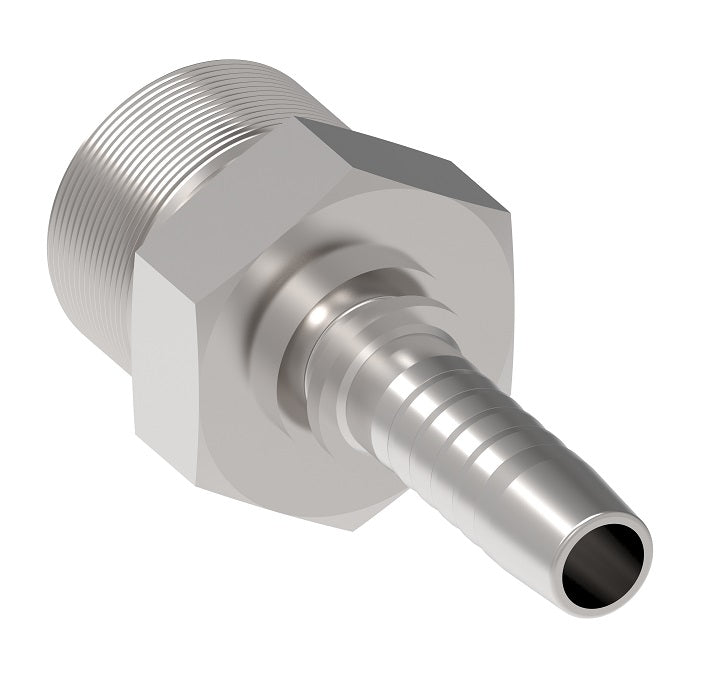

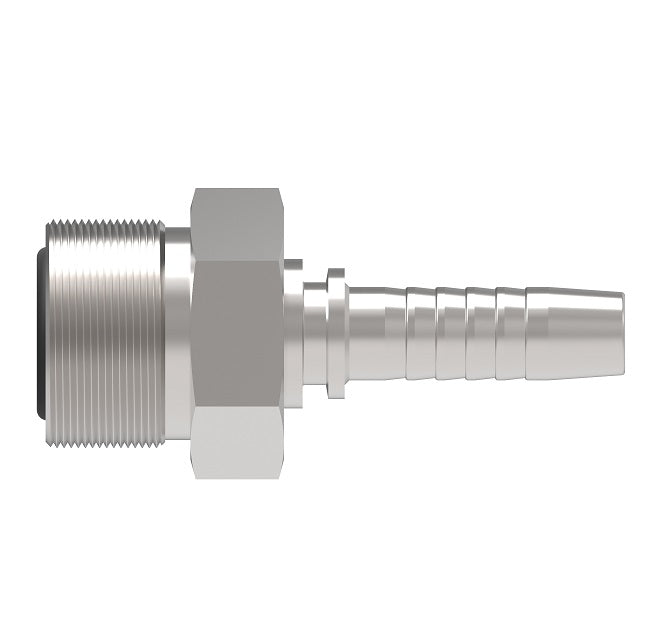

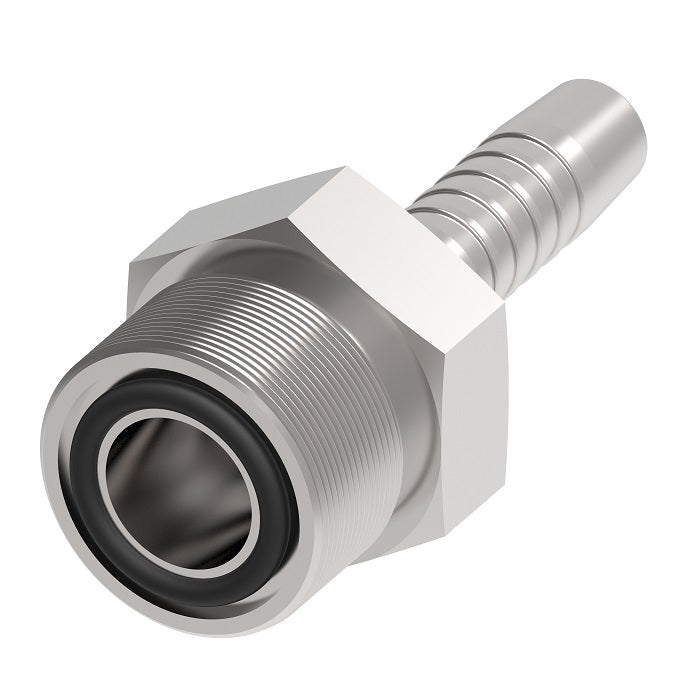

14211-06-04ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -06 Male O-Ring Face Seal x -04 Hose Barb | Steel

14211-06-04ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -06 Male O-Ring Face Seal x -04 Hose Barb | Steel

Name: 14211-06-04ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -06 Male O-Ring Face Seal x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 14211-06-04ZF Danfoss
Price: 32.03 USD
Availability: InStock

$32.03 - $32.03

$32.03

$32.03 - $32.03

$32.03

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight

Quantity

Specifications for Variant SKU: 14211-06-04ZF Danfoss
Brand:	Winner
Ends Configuration:	3/8in Male O-Ring Face Seal, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
14211-06-04ZF	-06	11/16-16	6	-04	2.05"	0.94"	0.15"	19mm
14211-06-06ZF	-06	11/16-16	10	-06	2.16"	0.94"	0.26"	19mm
14211-08-06ZF	-08	13/16-16	10	-06	2.26"	1.08"	0.28"	22mm
14211-08-08ZF	-08	13/16-16	12	-08	2.36"	1.12"	0.38"	22mm
14211-10-08ZF	-10	1-14	12	-08	2.52"	1.28"	0.39"	27mm
14211-12-10ZF	-12	1-3/16-12	16	-10	2.76"	1.42"	0.47"	32mm
14211-12-12ZF	-12	1-3/16-12	20	-12	2.95"	1.44"	0.59"	32mm
14211-16-12ZF	-16	1-7/16-12	20	-12	2.97"	1.46"	0.59"	38mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
