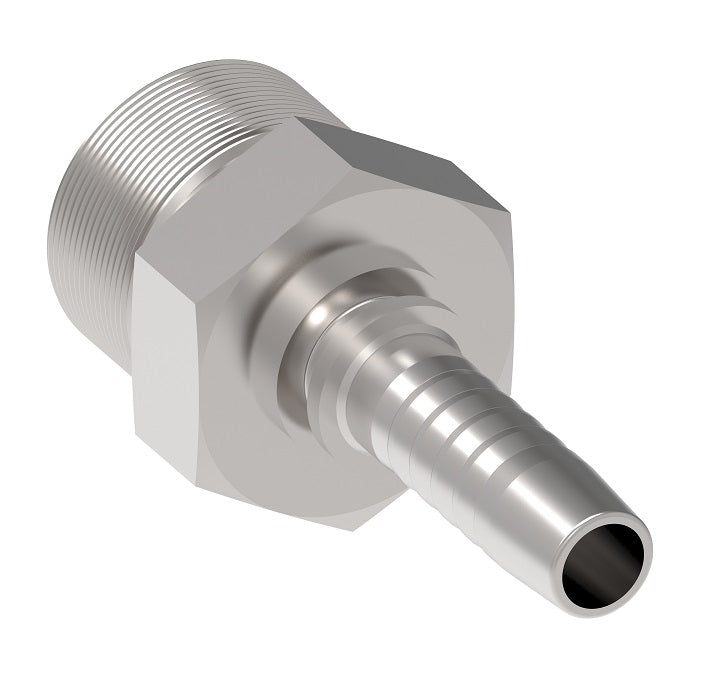

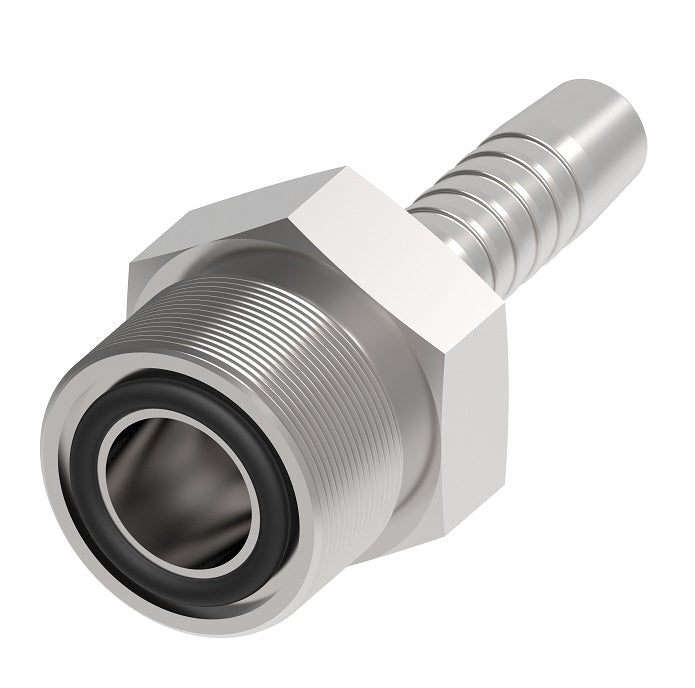

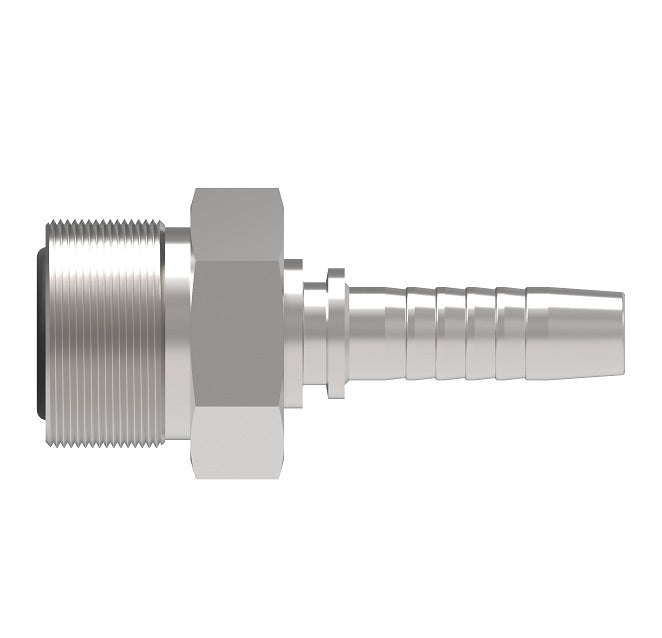

14211-12-10ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -10 Hose Barb | Steel
14211-12-10ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -10 Hose Barb | Steel
14211-12-10ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -10 Hose Barb | Steel
14211-12-10ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -10 Hose Barb | Steel

14211-12-10ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -10 Hose Barb | Steel

$42.42 - $42.42
$42.42
$42.42 - $42.42
$42.42

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight
Specifications for Variant SKU: 14211-12-10ZF Danfoss
Brand: Winner
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 2
14211-06-04ZF -06 11/16-16 6 -04 2.05" 0.94" 0.15" 19mm
14211-06-06ZF -06 11/16-16 10 -06 2.16" 0.94" 0.26" 19mm
14211-08-06ZF -08 13/16-16 10 -06 2.26" 1.08" 0.28" 22mm
14211-08-08ZF -08 13/16-16 12 -08 2.36" 1.12" 0.38" 22mm
14211-10-08ZF -10 1-14 12 -08 2.52" 1.28" 0.39" 27mm
14211-12-10ZF -12 1-3/16-12 16 -10 2.76" 1.42" 0.47" 32mm
14211-12-12ZF -12 1-3/16-12 20 -12 2.95" 1.44" 0.59" 32mm
14211-16-12ZF -16 1-7/16-12 20 -12 2.97" 1.46" 0.59" 38mm
