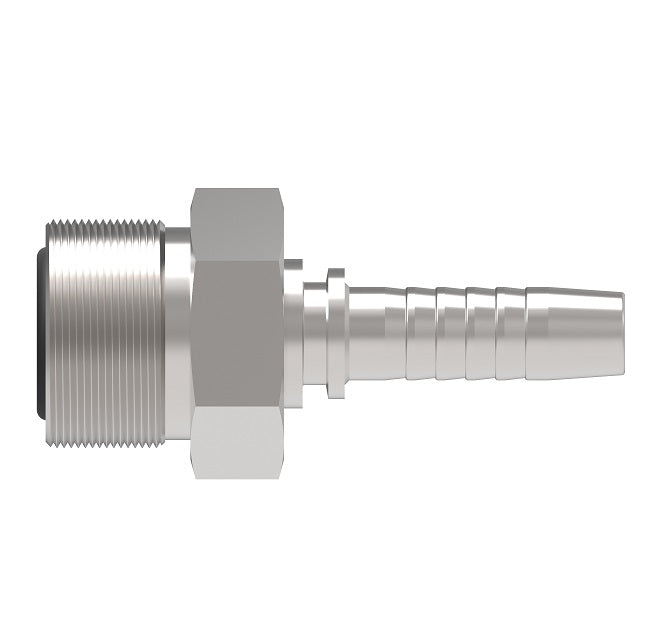

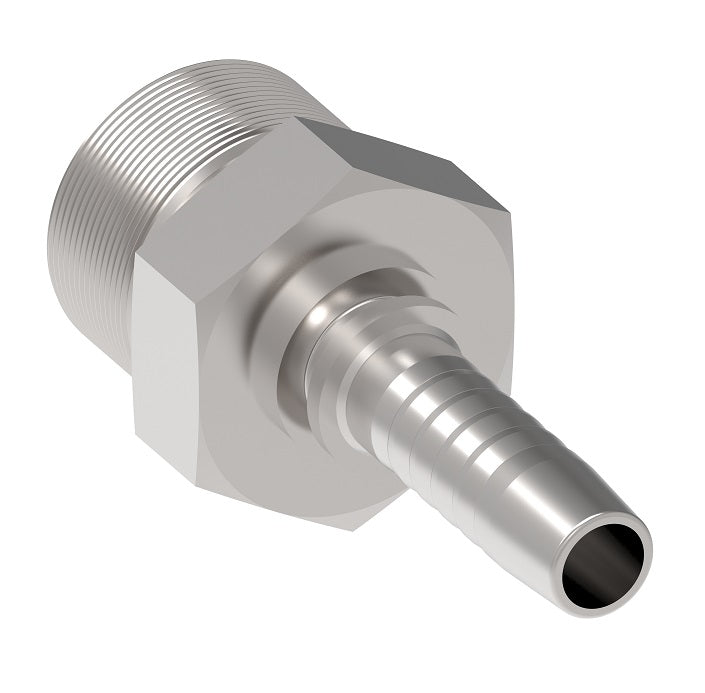

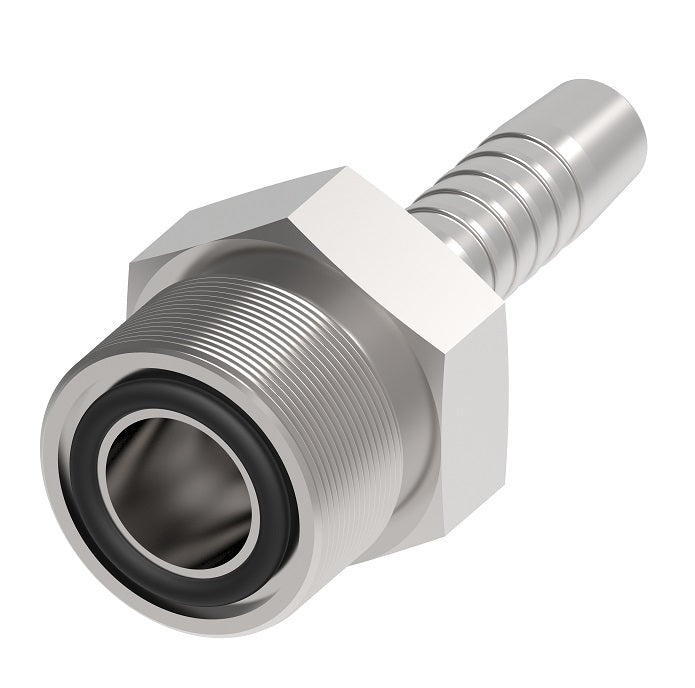

14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel

14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel

Name: 14211-12-12ZF Winner by Danfoss | Male ORS 2-Piece Hose Crimp Fitting | -12 Male O-Ring Face Seal x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 14211-12-12ZF Danfoss
Price: 37.15 USD
Availability: InStock

$37.15 - $37.15

$37.15

$37.15 - $37.15

$37.15

Winner by Danfoss
Male NPTF Rigid 2-Piece Hose Crimp Fitting - Male NPTF x Hose Barb - Straight

Quantity

Specifications for Variant SKU: 14211-12-12ZF Danfoss
Brand:	Winner
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
14211-06-04ZF	-06	11/16-16	6	-04	2.05"	0.94"	0.15"	19mm
14211-06-06ZF	-06	11/16-16	10	-06	2.16"	0.94"	0.26"	19mm
14211-08-06ZF	-08	13/16-16	10	-06	2.26"	1.08"	0.28"	22mm
14211-08-08ZF	-08	13/16-16	12	-08	2.36"	1.12"	0.38"	22mm
14211-10-08ZF	-10	1-14	12	-08	2.52"	1.28"	0.39"	27mm
14211-12-10ZF	-12	1-3/16-12	16	-10	2.76"	1.42"	0.47"	32mm
14211-12-12ZF	-12	1-3/16-12	20	-12	2.95"	1.44"	0.59"	32mm
14211-16-12ZF	-16	1-7/16-12	20	-12	2.97"	1.46"	0.59"	38mm
