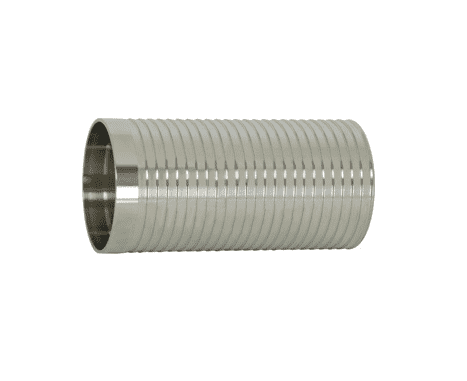

14WHRL-R250 Dixon 316L Stainless Steel Sanitary Long Weld Hose Adapter - 2-1/2" Tube OD

14WHRL-R250 Dixon Valve 316L Stainless Steel Sanitary Long Weld Hose Adapter - 2-1/2" Tube OD

Save $36.19 Save $36.19
$90.47
$90.47 - $90.47
$90.47
$54.28
$54.28 - $54.28
$54.28

Dixon Sanitary Polished Weld Adapters - Long Weld Hose Adapters - 316L Stainless Steel
Specifications for Variant SKU: 14WHRL-R250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Weld End, 2-1/2in Hose Barb
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
  • Suitable for use with band clamps.
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B
14WHRL-R100 1" 3.000" 1.030" .116" 0.5000
14WHRL-R150 1-1/2" 4.500" 1.030" .166" 0.4800
14WHRL-R200 2" 4.500" 2.030" .116" 0.3850
14WHRL-R250 2-1/2" 5.000" 2.530" .116" 0.8000
14WHRL-R300 3" 5.000" 3.030" .116" 0.7350
14WHRL-R400 4" 4.875" 4.030" .116" 1.2100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
