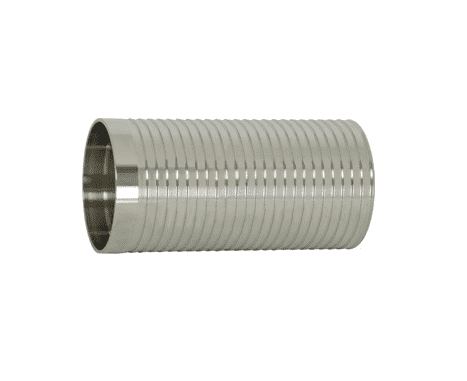

14WHRL-R400 Dixon 316L Stainless Steel Sanitary Long Weld Hose Adapter - 4" Tube OD

14WHRL-R400 Dixon Valve 316L Stainless Steel Sanitary Long Weld Hose Adapter - 4" Tube OD

Save $58.39 Save $58.39
$145.98
$145.98 - $145.98
$145.98
$87.59
$87.59 - $87.59
$87.59

Dixon Sanitary Polished Weld Adapters - Long Weld Hose Adapters - 316L Stainless Steel
Specifications for Variant SKU: 14WHRL-R400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in Hose Barb
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
  • Suitable for use with band clamps.
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B
14WHRL-R100 1" 3.000" 1.030" .116" 0.5000
14WHRL-R150 1-1/2" 4.500" 1.030" .166" 0.4800
14WHRL-R200 2" 4.500" 2.030" .116" 0.3850
14WHRL-R250 2-1/2" 5.000" 2.530" .116" 0.8000
14WHRL-R300 3" 5.000" 3.030" .116" 0.7350
14WHRL-R400 4" 4.875" 4.030" .116" 1.2100
