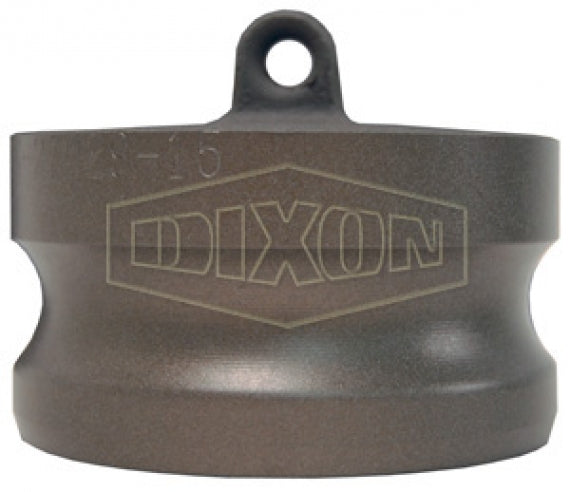

150-DP-ALH by Dixon Valve | Cam & Groove Dust Plug | Type DP | 1-1/2" Adapter End | Aluminum Hard Coat

Name: 150-DP-ALH by Dixon Valve | Cam & Groove Dust Plug | Type DP | 1-1/2" Adapter End | Aluminum Hard Coat
Brand: Dixon
SKU: 150-DP-ALH Dixon
Price: 32.44 USD
Availability: InStock

Save $21.63

$54.07

$54.07 - $54.07

$54.07

$32.44

$32.44 - $32.44

$32.44

Dixon Valve
Cam & Groove Fitting | Type DP | Dust Plug

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.

Quantity

Specifications for Variant SKU: 150-DP-ALH Dixon
Cam Type:	Type DP
Ends Configuration:	1-1/2in Male Cam & Groove
Material(s):	Aluminum Hard Coat

Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Aluminum Hard Coat Part Number	Brass Part Number	Unplated Malleable Iron Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size
-	-	50-DP-BR	-	-	50-DP-SS	1/2"
75-DP-AL	-	75-DP-BR	-	-	75-DP-SS	3/4"
100-DP-AL	-	100-DP-BR	-	-	100-DP-SS	1"
125-DP-AL	-	125-DP-BR	-	-	125-DP-SS	1-1/4"
150-DP-AL	150-DP-ALH	150-DP-BR	-	-	150-DP-SS	1-1/2"
200-DP-AL	200-DP-ALH	200-DP-BR	200-DP-MI	200-DP-PM	200-DP-SS	2"
250-DP-AL	-	-	-	-	250-DP-SS	2-1/2"
300-DP-AL	300-DP-ALH	300-DP-BR	300-DP-MI	300-DP-PM	300-DP-SS	3"
400-DP-AL	400-DP-ALH	400-DP-BR	400-DP-MI	400-DP-PM	400-DP-SS	4"
500-DP-AL	-	-	-	-	-	5"
600-DP-AL	-	600-DP-BR	-	-	600-DP-SS	6"
800-DP-AL	-	-	-	-	-	8"
801-DP-AL (Boss-Lock)	-	-	-	-	-	8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
