50-DP-SS by Dixon Valve | Cam & Groove Dust Plug | Type DP | 1/2" Adapter End | 316 Stainless Steel

50-DP-SS by Dixon Valve | Cam & Groove Dust Plug | Type DP | 1/2" Adapter End | 316 Stainless Steel

Save $18.30 Save $18.30
$45.75
$45.75 - $45.75
$45.75
$27.45
$27.45 - $27.45
$27.45

Dixon Valve

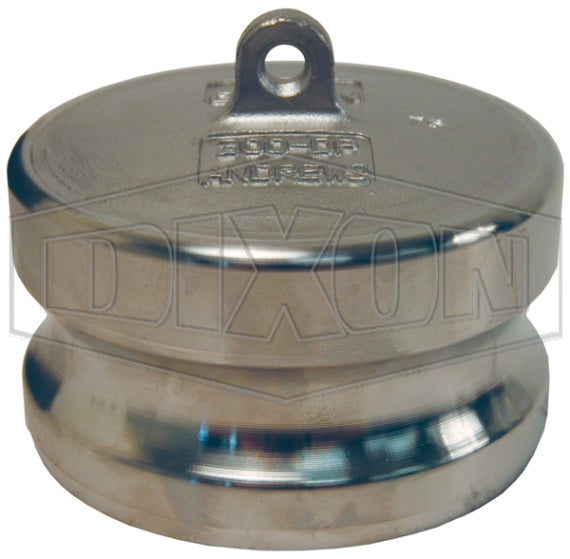

Cam & Groove Fitting | Type DP | Dust Plug

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.
Specifications for Variant SKU: 50-DP-SS Dixon
Ends Configuration: 1/2in Male Cam & Groove
Material(s): 316 Stainless Steel
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Aluminum
Hard Coat
Part Number		 Brass
Part Number		 Unplated
Malleable Iron
Part Number		 Plated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size
- - 50-DP-BR - - 50-DP-SS 1/2"
75-DP-AL - 75-DP-BR - - 75-DP-SS 3/4"
100-DP-AL - 100-DP-BR - - 100-DP-SS 1"
125-DP-AL - 125-DP-BR - - 125-DP-SS 1-1/4"
150-DP-AL 150-DP-ALH 150-DP-BR - - 150-DP-SS 1-1/2"
200-DP-AL 200-DP-ALH 200-DP-BR 200-DP-MI 200-DP-PM 200-DP-SS 2"
250-DP-AL - - - - 250-DP-SS 2-1/2"
300-DP-AL 300-DP-ALH 300-DP-BR 300-DP-MI 300-DP-PM 300-DP-SS 3"
400-DP-AL 400-DP-ALH 400-DP-BR 400-DP-MI 400-DP-PM 400-DP-SS 4"
500-DP-AL - - - - - 5"
600-DP-AL - 600-DP-BR - - 600-DP-SS 6"
800-DP-AL - - - - - 8"
801-DP-AL
(Boss-Lock)		 - - - - - 8"
