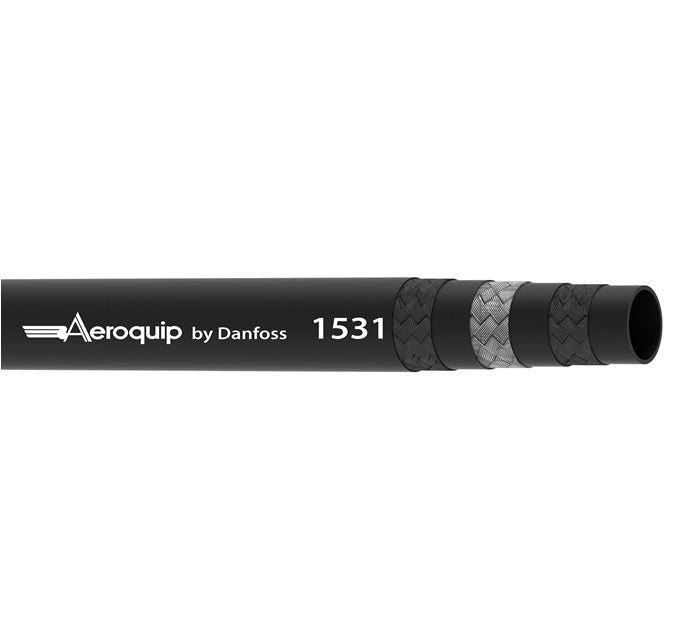

1531-16 Aeroquip by Danfoss | Railroad Air Brake Hose | AAR-M618 | 0.88" ID

1531-16 Aeroquip by Danfoss | Railroad Air Brake Hose | AAR-M618 | 0.88" ID

$24.16 - $24.16
$24.16
$24.16 - $24.16
$24.16

Aeroquip® by Danfoss
1531 Series | Railroad Air Brake Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: 1531-16 Danfoss
Brand: Aeroquip
Series: 1531 Series
Hose Color(s): Black
Internal Diameter: 0.88in
Outer Diameter: 1.38in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: AAR-M618
Hose Properties:
Application: Locomotive air brake lines. SAE Rating: N/A
Other Ratings: Exceeds: AAR-M618 Tube: Synthetic Rubber
Reinforcement: Partial Textile Braid, Wire Reinforcement
(Unless otherwise noted.)		 Cover: Synthetic Rubber
Temperature Range: -65°F to +212°F
(-54°C to +100°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
1531-10* 12,7 mm 0.50" 23,9mm 0.94" 21,0 bar 300 psi 84,0 bar 1200 Psi 139,7mm 5.50" 0,57 kg/m 0,38 lbs/ft
1531-12* 16,0 mm 0.63" 28,4mm 1.12" 21,0 bar 300 psi 84,0 bar 1200 Psi 165,1mm 6.50" 0,71 kg/m 0,48 lbs/ft
1531-16 22,4 mm 0.88" 35,1mm 1.38" 21,0 bar 300 psi 84,0 bar 1200 Psi 187,5mm 7.38" 1,07 kg/m 0,72 lbs/ft
1531-20 28,7 mm 1.13" 41,4mm 1.63" 21,0 bar 300 psi 84,0 bar 1200 Psi 241,3mm 9.50" 1,16 kg/m 0,78 lbs/ft
1531A-24 35,1 mm 1.38" 47,8mm 1.88" 21,0 bar 300 psi 84,0 bar 1200 Psi 266,7mm 10.50" 1,55 kg/m 1,04 lbs/ft

* Single wire braid

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
