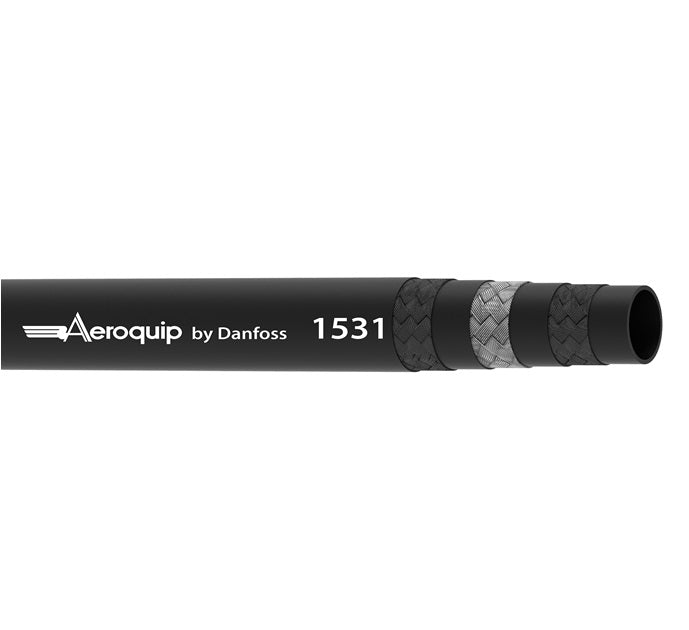

1531A-24 Aeroquip by Danfoss | Railroad Air Brake Hose | AAR-M618 | 1.38" ID

1531A-24 Aeroquip by Danfoss | Railroad Air Brake Hose | AAR-M618 | 1.38" ID

$41.86 - $41.86
$41.86
$41.86 - $41.86
$41.86

Aeroquip® by Danfoss
1531 Series | Railroad Air Brake Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1531A-24 Danfoss
Brand: Aeroquip
Series: 1531 Series
Hose Color(s): Black
Internal Diameter: 1.38in
Outer Diameter: 1.88in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: AAR-M618
Hose Properties:
Application: Locomotive air brake lines. SAE Rating: N/A
Other Ratings: Exceeds: AAR-M618 Tube: Synthetic Rubber
Reinforcement: Partial Textile Braid, Wire Reinforcement
(Unless otherwise noted.)		 Cover: Synthetic Rubber
Temperature Range: -65°F to +212°F
(-54°C to +100°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
1531-10* 12,7 mm 0.50" 23,9mm 0.94" 21,0 bar 300 psi 84,0 bar 1200 Psi 139,7mm 5.50" 0,57 kg/m 0,38 lbs/ft
1531-12* 16,0 mm 0.63" 28,4mm 1.12" 21,0 bar 300 psi 84,0 bar 1200 Psi 165,1mm 6.50" 0,71 kg/m 0,48 lbs/ft
1531-16 22,4 mm 0.88" 35,1mm 1.38" 21,0 bar 300 psi 84,0 bar 1200 Psi 187,5mm 7.38" 1,07 kg/m 0,72 lbs/ft
1531-20 28,7 mm 1.13" 41,4mm 1.63" 21,0 bar 300 psi 84,0 bar 1200 Psi 241,3mm 9.50" 1,16 kg/m 0,78 lbs/ft
1531A-24 35,1 mm 1.38" 47,8mm 1.88" 21,0 bar 300 psi 84,0 bar 1200 Psi 266,7mm 10.50" 1,55 kg/m 1,04 lbs/ft

* Single wire braid

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
