15356-13.5 by Coxreels | Ceiling Mount 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 13.5" Drum Width | Fits 1175 & 1275 Series | Steel

15356-13.5 by Coxreels | Ceiling Mount 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 13.5" Drum Width | Fits 1175 & 1275 Series | Steel

Save $50.15 Save $50.15
$220.25
$220.25 - $220.25
$220.25
$170.10
$170.10 - $170.10
$170.10
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 15356-13.5 Cox Reels
Series: Ceiling Mount Roller Bracket Series
Material(s): Steel
Compatible with the following Series: 1175 Series  |   1275 Series

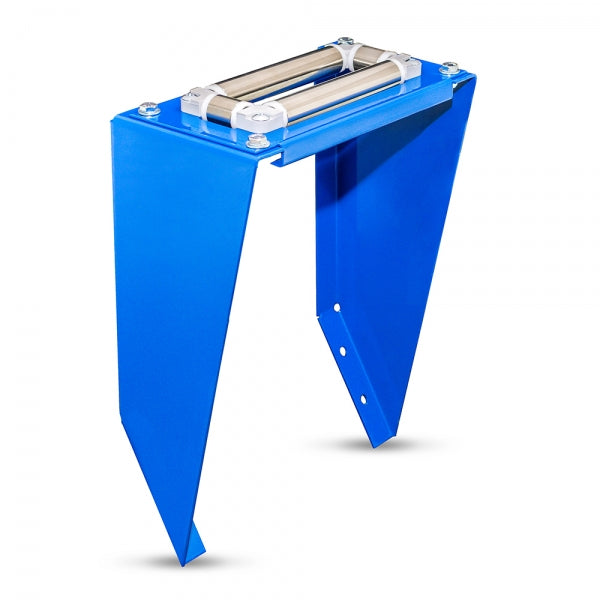

Coxreels 4-Way Top Roller Bracket - Ceiling Mount

Top-payout 4-way roller bracket for ceiling-mounted hand crank and motorized hose reels.

What are the main product features?
  • 4-way enclosed, pinch-proof 1" stainless steel rollers
  • Powder coated steel brackets
  • For ceiling mount installations; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number Drum Width Fits
15356-7.5 7.5" 1175
15356-11.5 11.5" 1175, Storage
15356-13.5 13.5" 1175, 1275
15356-15.5 15.5" 1175
15356-20 20" 1175, 1275, Storage
15358-6 6" 1125 Pure Flow, 1125, 1125WCL, HP1125
15358-8 8" 1125PCL, 1275, 1275HP, 1275W
15358-9.5 9.5" 1125
15358-12 12" 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15358-15.5 15.5" 1125
15358-18 18" 1125, 1275, 1275W, HP1125, Storage
15358-20 20" 1275
15358-22 22" 1125
15358-24 24" 1125, 1275, 1275W, HP1125
15358-28 28" 1125, HP1125, Storage

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
