15358-18 by Coxreels | Ceiling Mount 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 18" Drum Width | Steel

Name: 15358-18 by Coxreels | Ceiling Mount 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 18" Drum Width | Steel
Brand: Coxreels
SKU: 15358-18 Cox Reels
Price: 174.04 USD
Availability: InStock

Save $53.84

$227.88

$227.88 - $227.88

$227.88

$174.04

$174.04 - $174.04

$174.04

This Item has a 3 Week Lead Time.

Specifications for Variant SKU: 15358-18 Cox Reels
Series:	Ceiling Mount Roller Bracket Series
Material(s):	Steel
Compatible with the following Series:	1125 Series \| 1275 Series \| 1275W Series \| HP1125 Series \| Storage Series

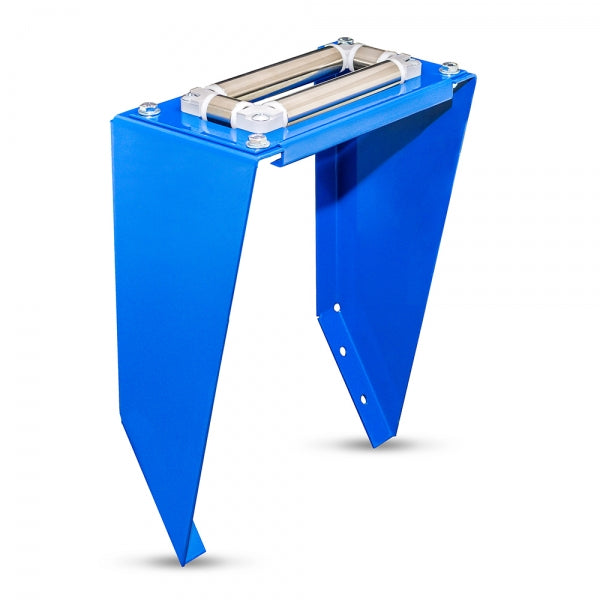

Coxreels 4-Way Top Roller Bracket - Ceiling Mount

Top-payout 4-way roller bracket for ceiling-mounted hand crank and motorized hose reels.

What are the main product features?

4-way enclosed, pinch-proof 1" stainless steel rollers
Powder coated steel brackets
For ceiling mount installations; sized by drum width

Which part numbers are available?

Order the part number whose drum width matches your reel's drum width.

Part Number	Drum Width	Fits
15356-7.5	7.5"	1175
15356-11.5	11.5"	1175, Storage
15356-13.5	13.5"	1175, 1275
15356-15.5	15.5"	1175
15356-20	20"	1175, 1275, Storage
15358-6	6"	1125 Pure Flow, 1125, 1125WCL, HP1125
15358-8	8"	1125PCL, 1275, 1275HP, 1275W
15358-9.5	9.5"	1125
15358-12	12"	1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage
15358-15.5	15.5"	1125
15358-18	18"	1125, 1275, 1275W, HP1125, Storage
15358-20	20"	1275
15358-22	22"	1125
15358-24	24"	1125, 1275, 1275W, HP1125
15358-28	28"	1125, HP1125, Storage

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
