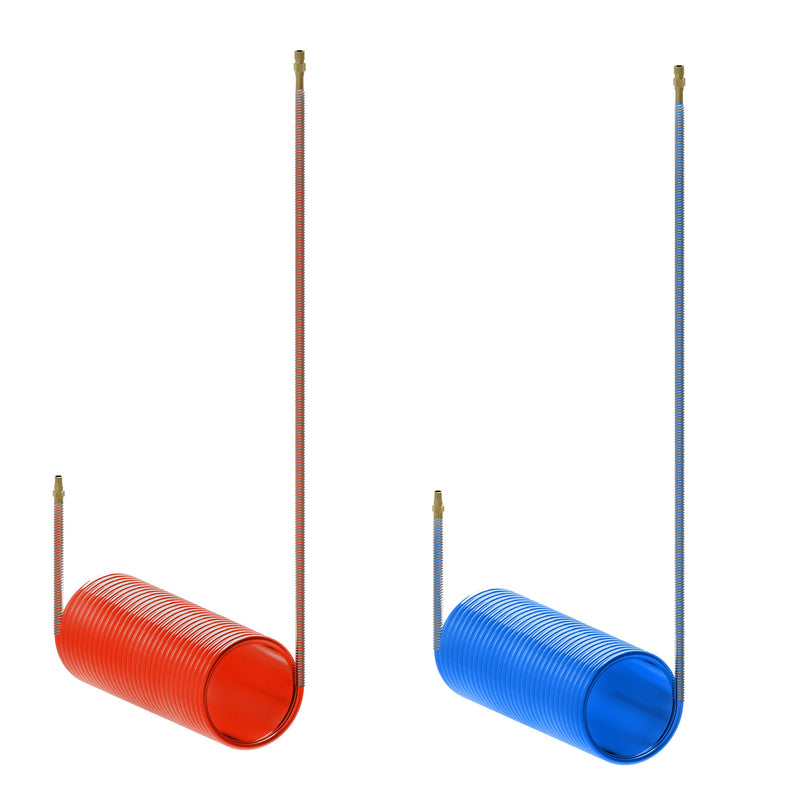

15CA48-12 Synflex Eclipse by Danfoss | 15CA Eclipse | Air Brake Tubing Coil Set | Red & Blue | 48" Pigtails | 15ft Length

15CA48-12 Synflex Eclipse by Danfoss | 15CA Eclipse | Air Brake Tubing Coil Set | Red & Blue | 48" Pigtails | 15ft Length

$112.67 - $112.67
$112.67
$112.67 - $112.67
$112.67

Synflex by Danfoss
15CA Eclipse Series | Air Brake Coils

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: 15CA48-12 Danfoss
Brand: Aeroquip
Series: 15CA Eclipse
Internal Diameter: 0.375in
Outer Diameter: 0.50in
Tubing Construction: Nylon
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J844 Type B
Hose Properties:
Application: Articulating connections for air brake line systems (connections between towed and towing motor vehicle).
Tractor-to-trailer air connections used in extremely low temperatures.		 SAE Rating: Meets: SAE J844 Type B, DOT-FMVSS 106, (49 FR571 106)
Tube: Synflex® Eclipse air brake tubing, 100% polyamide Reinforcement: Polyester Yarn
Operating Temperature: (-65°F to +200°F)
(-54°C to +93°C)
Features: Superior abrasion resistance
Excellent return and coil memory
Enhanced flexibility and extension
Brass end fittings with corrosion resistant spring guards
Part Number Description Color Valve Pigtail Length Male Ends Working Length
Valve Gladhand
mm in mm in mm in m ft
15CA12-12 15' Working Length Coil Set Red & Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CA48-12 15' Working Length Coil Set Red & Blue 1.219,2 mm 48.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CAR12-12 15' Working Length Coil Red 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CAB12-12 15' Working Length Coil Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
20CA12-12 20' Working Length Coil Set Red & Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 6,1 m 20.00 ft
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
