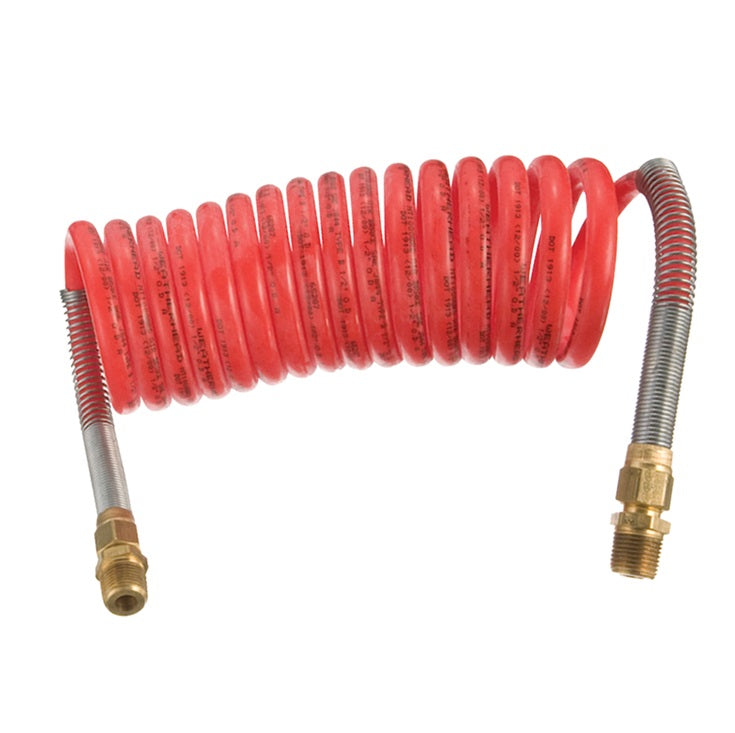

15CAR12-12 Synflex Eclipse by Danfoss | 15CA Eclipse | Air Brake Tubing Coil | Red | 12" Pigtails | 15ft Length

15CAR12-12 Synflex Eclipse by Danfoss | 15CA Eclipse | Air Brake Tubing Coil | Red | 12" Pigtails | 15ft Length

$753.48 - $753.48
$753.48
$753.48 - $753.48
$753.48

Synflex by Danfoss
15CA Eclipse Series | Air Brake Coils

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 15 ft

Specifications for Variant SKU: 15CAR12-12 Danfoss | 15 |
Brand: Synflex
Series: 15CA Eclipse Series
Hose Color(s): Red
Tubing Construction: Nylon
Cover Construction: Nylon
Hose Properties:
Application: Articulating connections for air brake line systems (connections between towed and towing motor vehicle).
Tractor-to-trailer air connections used in extremely low temperatures.		 SAE Rating: Meets: SAE J844 Type B, DOT-FMVSS 106, (49 FR571 106)
Tube: Synflex® Eclipse air brake tubing, 100% polyamide Reinforcement: Polyester Yarn
Operating Temperature: (-65°F to +200°F)
(-54°C to +93°C)
Features: Superior abrasion resistance
Excellent return and coil memory
Enhanced flexibility and extension
Brass end fittings with corrosion resistant spring guards
Part Number Description Color Valve Pigtail Length Male Ends Working Length
Valve Gladhand
mm in mm in mm in m ft
15CA12-12 15' Working Length Coil Set Red & Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CA48-12 15' Working Length Coil Set Red & Blue 1.219,2 mm 48.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CAR12-12 15' Working Length Coil Red 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
15CAB12-12 15' Working Length Coil Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 4.6 m 15.00 ft
20CA12-12 20' Working Length Coil Set Red & Blue 304,8 mm 12.00" 12,7mm 0.50" 12,7mm 0.50" 6,1 m 20.00 ft
