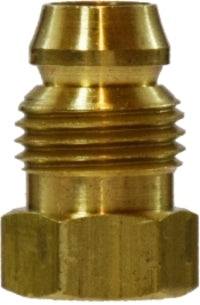

16009 Midland Double Compression Fitting - Break-Away Nut - 1/8" Tube OD - Brass

16009 by Midland | Double Compression Fitting | Break-Away Nut | 1/8" Tube OD | Brass

Save $3.25 Save $3.25
$8.13
$8.13 - $8.13
$8.13
$4.88
$4.88 - $4.88
$4.88

Midland Industries
Brass Fitting - Double Compression Threaded Sleeve Fitting - Break-Away Nut - Brass

1-Piece Fiting

Inventory @ Manufacturers Warehouse: 1437 Units
Specifications for Variant SKU: 16009 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
Applications: For use on oil, air, water and grease lubrication systems. Used With: Use with aluminum and copper tubing or plastic tubing with internal tube support. Not recommended for steel tubing.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: N/A
Lead Free: These are NOT Lead Free Tolerance: N/A
Features:
  • Easy to assemble, no flaring, two piece construction.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size - B 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Working Pressure 500 PSI 500 PSI 500 PSI 250 PSI 250 PSI
Crossover Series:
181SP 181-BA 21604 99LB 81LB
Part Number Size A Hex Approx. Weight
(Lbs.)
16009
 1/8" 0.66" 0.31" 0.02
16090
(16-090) 		3/16" 0.57" 0.37" 0.02
16010
(16-010) 		1/4" 0.62" 0.43" 0.02
16011
 5/16" 0.77" 0.50" 0.04
16012
 3/8" 0.84" 0.56" 0.04
16013
 1/2" 0.92" 0.69" 0.05

Dimension data can change without notice.
