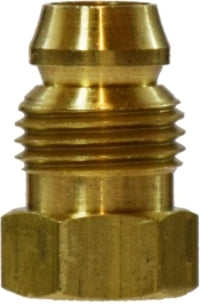

16010 (16-010) Midland Double Compression Fitting - Break-Away Nut - 1/4" Tube OD - Brass

16010 by Midland | Double Compression Fitting | Break-Away Nut | 1/4" Tube OD | Brass

Save $0.87 Save $0.87
$2.18
$2.18 - $2.18
$2.18
$1.31
$1.31 - $1.31
$1.31

Midland Industries
Brass Fitting - Double Compression Threaded Sleeve Fitting - Break-Away Nut - Brass

1-Piece Fiting

Inventory @ Manufacturers Warehouse: 2573 Units
Specifications for Variant SKU: 16010 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
Applications: For use on oil, air, water and grease lubrication systems. Used With: Use with aluminum and copper tubing or plastic tubing with internal tube support. Not recommended for steel tubing.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: N/A
Lead Free: These are NOT Lead Free Tolerance: N/A
Features:
  • Easy to assemble, no flaring, two piece construction.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size - B 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Working Pressure 500 PSI 500 PSI 500 PSI 250 PSI 250 PSI
Crossover Series:
181SP 181-BA 21604 99LB 81LB
Part Number Size A Hex Approx. Weight
(Lbs.)
16009
 1/8" 0.66" 0.31" 0.02
16090
(16-090) 		3/16" 0.57" 0.37" 0.02
16010
(16-010) 		1/4" 0.62" 0.43" 0.02
16011
 5/16" 0.77" 0.50" 0.04
16012
 3/8" 0.84" 0.56" 0.04
16013
 1/2" 0.92" 0.69" 0.05

Dimension data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
