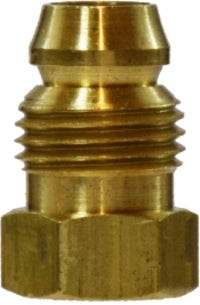

16013 by Midland | Double Compression Fitting | Break-Away Nut | 1/2" Tube OD | Brass

Name: 16013 by Midland | Double Compression Fitting | Break-Away Nut | 1/2" Tube OD | Brass
Brand: Midland Industries
SKU: 16013 Midland
Price: 8.59 USD
Availability: InStock

Save $1.58

$10.17

$10.17 - $10.17

$10.17

$8.59

$8.59 - $8.59

$8.59

Midland Industries
Brass Fitting - Double Compression Threaded Sleeve Fitting - Break-Away Nut - Brass

Quantity

Specifications for Variant SKU: 16013 Midland
Material(s):	Brass
Applicable Specs & Approvals:	ASA, ASME, SAE

Applications:	For use on oil, air, water and grease lubrication systems.	Used With:	Use with aluminum and copper tubing or plastic tubing with internal tube support. Not recommended for steel tubing.
SAE Rating:	N/A	Conformance:	N/A
Vibration:	N/A	Temperature Range:	N/A
Lead Free:	These are NOT Lead Free	Tolerance:	N/A

Features:

Easy to assemble, no flaring, two piece construction.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"
Thread Size - B	5/16-24	3/8-24	7/16-24	1/2-20	9/16-20
Working Pressure	500 PSI	500 PSI	500 PSI	250 PSI	250 PSI

Crossover Series:
181SP	181-BA	21604	99LB	81LB


Part Number	Size	A	Hex	Approx. Weight (Lbs.)
16009	1/8"	0.66"	0.31"	0.02
16090 (16-090)	3/16"	0.57"	0.37"	0.02
16010 (16-010)	1/4"	0.62"	0.43"	0.02
16011	5/16"	0.77"	0.50"	0.04
16012	3/8"	0.84"	0.56"	0.04
16013	1/2"	0.92"	0.69"	0.05

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
