16011-06-04ZF Winner by Danfoss | Male O-Ring Boss 2-Piece Hose Crimp Fitting | -06 Male O-Ring Boss x -04 Hose Barb | Steel

16011-06-04ZF Winner by Danfoss | Male O-Ring Boss 2-Piece Hose Crimp Fitting | -06 Male O-Ring Boss x -04 Hose Barb | Steel

Name: 16011-06-04ZF Winner by Danfoss | Male O-Ring Boss 2-Piece Hose Crimp Fitting | -06 Male O-Ring Boss x -04 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 16011-06-04ZF Danfoss
Price: 17.91 USD
Availability: InStock

$17.91 - $17.91

$17.91

$17.91 - $17.91

$17.91

Winner by Danfoss

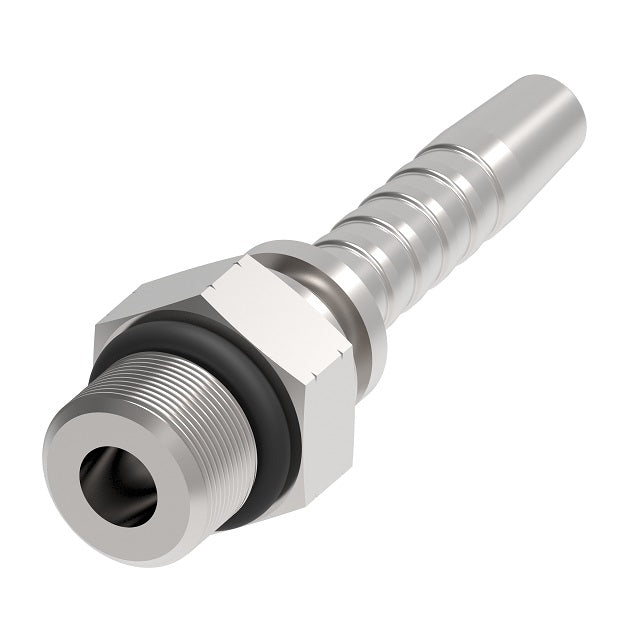

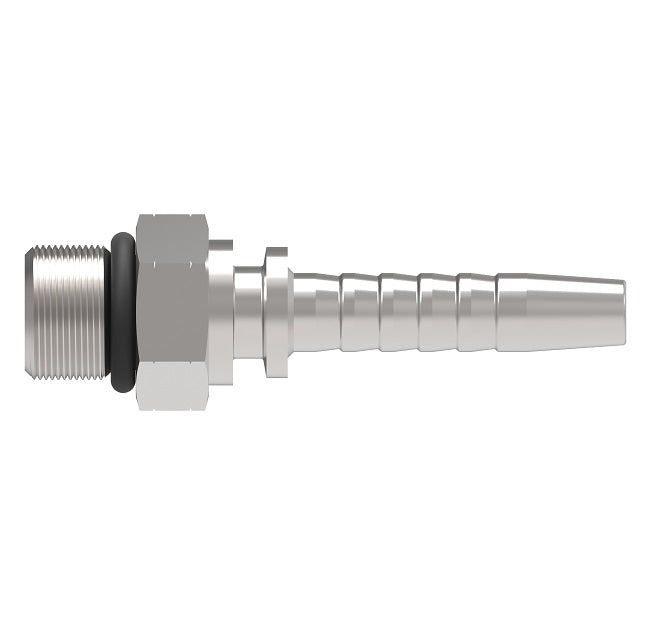

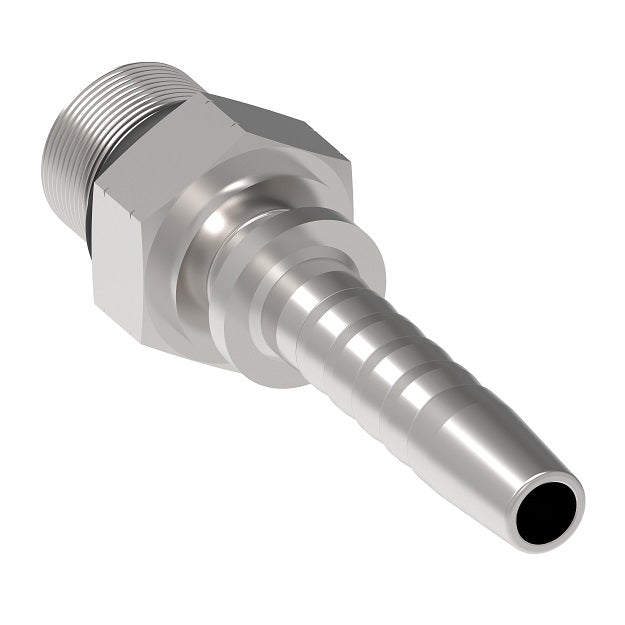

Male O-Ring Boss 2-Piece Hose Crimp Fitting - Male ORB x Hose Barb - Straight

Specifications for Variant SKU: 16011-06-04ZF Danfoss
Brand:	Winner
Ends Configuration:	3/8in Male O-Ring Boss, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
16011-06-04ZF	-06	9/16-18	6	-04	1.99"	0.89"	0.15"	17mm
16011-06-06ZF	-06	9/16-18	10	-06	2.07"	0.89"	0.27"	17mm
16011-08-06ZF	-08	3/4-16	10	-06	2.11"	0.93"	0.27"	22mm
16011-08-08ZF	-08	3/4-16	12	-08	2.19"	0.94"	0.39"	22mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
