Winner by Danfoss

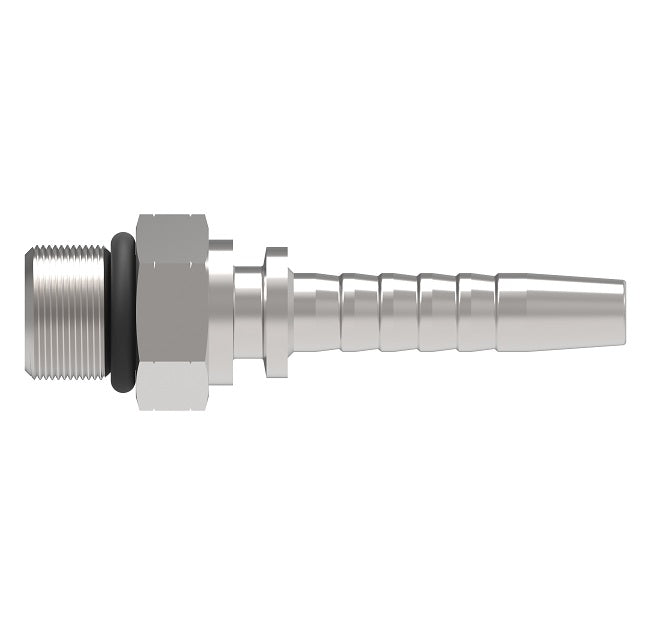

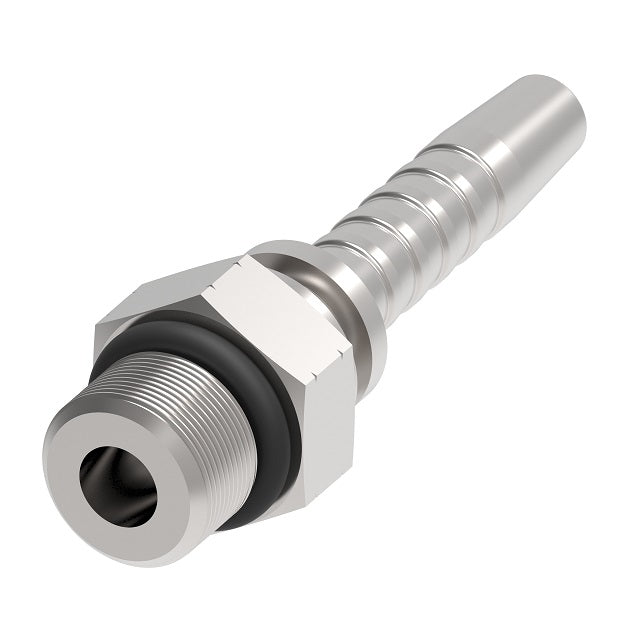

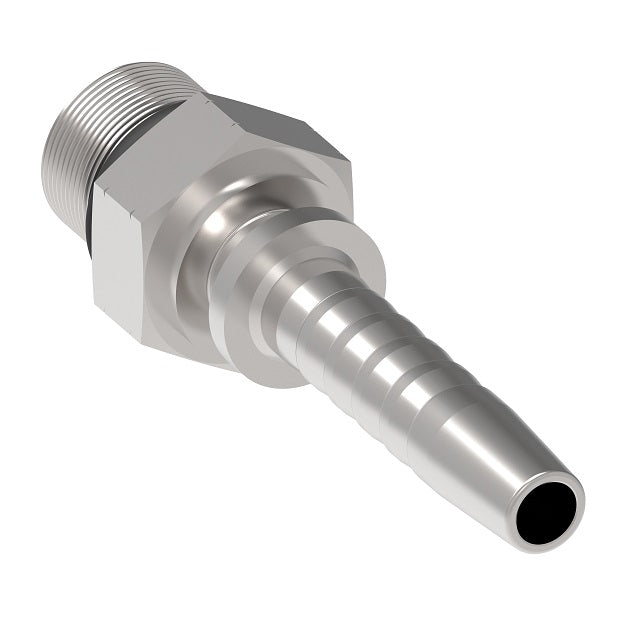

Male O-Ring Boss 2-Piece Hose Crimp Fitting - Male ORB x Hose Barb - Straight

Specifications for Variant SKU: 16011-06-06ZF Danfoss
Brand:	Winner
Ends Configuration:	3/8in Male O-Ring Boss, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	Hex 2
16011-06-04ZF	-06	9/16-18	6	-04	1.99"	0.89"	0.15"	17mm
16011-06-06ZF	-06	9/16-18	10	-06	2.07"	0.89"	0.27"	17mm
16011-08-06ZF	-08	3/4-16	10	-06	2.11"	0.93"	0.27"	22mm
16011-08-08ZF	-08	3/4-16	12	-08	2.19"	0.94"	0.39"	22mm
