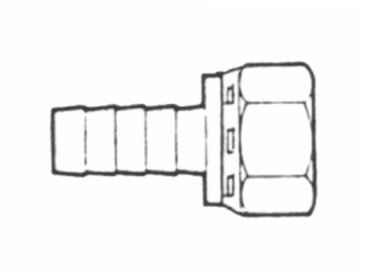

1619HS by Couplamatic | Suction & Return Line Coupling | JIC 37° | Female Swivel | 1" Hose ID | 1-5/16x12 Thread Size

1619HS by Couplamatic | Suction & Return Line Coupling | 1" Hose ID x 1-5/16x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc

Save $1.12 Save $1.12
$11.19
$11.19 - $11.19
$11.19
$10.07
$10.07 - $10.07
$10.07

Couplamatic Inc
Suction and Return Line Couplings - JIC 37° - Female Swivel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1619HS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Female JIC
Compatible with the following Series: 104MB Series  |   3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Thread Size Tube OD
1222HS 3/4" 1-1/16x12 3/4"
1619HS 1" 1-5/16x12 1"
2006HS 1-1/4" 1-5/8x12 1-1/4"
2407HS 1-1/2" 1-7/8x12 1-1/2"
3205HS 2" 2-1/2x12 2"
