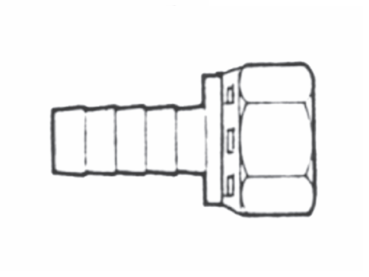

2006HS by Couplamatic | Suction & Return Line Coupling | JIC 37° | Female Swivel | 1-1/4" Hose ID | 1-5/8x12 Thread Size

2006HS by Couplamatic | Suction & Return Line Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc

Save $14.75 Save $14.75
$36.87
$36.87 - $36.87
$36.87
$22.12
$22.12 - $22.12
$22.12

Couplamatic Inc
Suction and Return Line Couplings - JIC 37° - Female Swivel
Specifications for Variant SKU: 2006HS Couplamatic
Series: Suction & Return Line Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Female JIC
Compatible with the following Series: 104MB Series  |   3284H Series
Features:
  • Stems can be banded or clamped.
  • Trivalent Zinc.
  • Note: 3/4" thru 2" hydraulic suction hose can also be crimped using standard Grip-Crimp.
    3/4" thru 1-1/4" can be crimped with standard Vari-Crimp.
Part Number Hose ID Thread Size Tube OD
1222HS 3/4" 1-1/16x12 3/4"
1619HS 1" 1-5/16x12 1"
2006HS 1-1/4" 1-5/8x12 1-1/4"
2407HS 1-1/2" 1-7/8x12 1-1/2"
3205HS 2" 2-1/2x12 2"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
