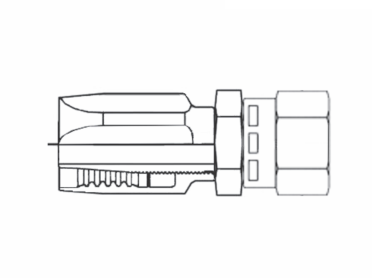

16R5-16FJ Couplamatic Reusable Coupling - R5 Reusables - JIC 37° - Female Swivel - 7/8" Hose ID - 1-5/16-12 Thread Size

16R5-16FJ by Couplamatic | R5 Reusable Coupling | 7/8" Hose ID x 1-5/16-12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $2.66 Save $2.66
$26.63
$26.63 - $26.63
$26.63
$23.97
$23.97 - $23.97
$23.97

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - JIC 37° - Female Swivel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 16R5-16FJ Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 7/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Part Number Hose ID Hose Dash Size Thread Size Tube OD Hose Type
    4R5-4FJ 3/16" -04 7/16-20 1/4" 100R5
    5R5-5FJ 1/4" -05 1/2-20 5/16" 100R5
    6R5-6FJ 5/16" -06 9/16-18 3/8" 100R5
    8R5-8FJ 13/32" -08 3/4-16 1/2" 100R5
    10R5-10FJ 1/2" -10 7/8-14 5/8" 100R5
    12R5-12FJ 5/8" -12 1-1/16-12 3/4" 100R5
    16R5-16FJ 7/8" -16 1-5/16-12 1" 100R5
    20R5-20FJ 1-1/8" -20 1-5/8-12 1-1/4" 100R5
