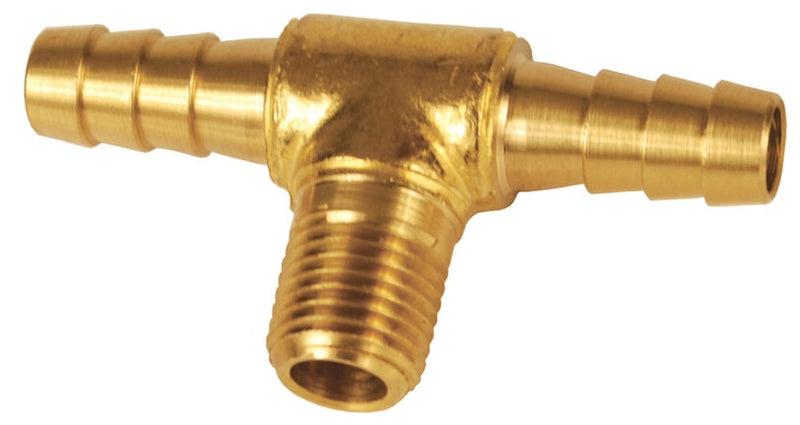

1790604C by Dixon Valve | Hose Mender / Splicer Reducer | Tee | 3/8" Hose ID x 3/8" Hose ID x 1/4" Male NPTF Branch | Brass

Name: 1790604C by Dixon Valve | Hose Mender / Splicer Reducer | Tee | 3/8" Hose ID x 3/8" Hose ID x 1/4" Male NPTF Branch | Brass
Brand: Dixon
SKU: 1790604C Dixon
Price: 5.84 USD
Availability: InStock

$5.63 - $5.63

$5.63

$5.84

$5.84 - $5.84

$5.84

Dixon Valve
Hose Mender / Splicer | Tee | Hose Barb x Hose Barb x Hose Barb

Tee for connecting and branching three hoses.

Quantity

Specifications for Variant SKU: 1790604C Dixon
Series:	179 Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Male NPTF, 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s):	Brass

Construction:
Forged
Safety Notes:
All standard hose fittings are intended for use with hose clamps or crimped ferrules.

Brass		Lead-Free Brass Part Number	Stainless Steel		Hose I.D.
Previous Part Number	Part Number	Lead-Free Brass Part Number	Previous Part Number	Part Number	Hose I.D.
179-0202	1790202C	-	-	-	1/8" x 1/8" x 1/8"
179-0303	1790303C	-	-	-	3/16" x 3/16" x 3/16"
179-0402	1790402C	-	-	-	1/4" x 1/4" x 1/8" Branch
179-0404	1790404C	1790404CLF	1790404SS	1790404SS	1/4" x 1/4" x 1/4"
179-0505	1790505C	-	-	-	5/16" x 5/16" x 5/16"
179-0604	1790604C*	-	-	-	3/8" x 3/8" x 1/4" Branch
-	1790604BARB	-	-	-	3/8" x 3/8" x 1/4" Branch
179-0606	1790606C	1790606CLF	1790606SS	1790606SS	3/8" x 3/8" x 3/8"
179-0806	1790806C	-	-	-	1/2" x 1/2" x 3/8" Branch
179-0808	1790808C	-	1790808SS	1790808SS	1/2" x 1/2" x 1/2"
179-1010	1791010C	-	-	-	5/8" x 5/8" x 5/8"
179-1208	1791208C	-	-	-	3/4" x 3/4" x 1/2" Branch
179-1212	1791212C	-	-	-	3/4" x 3/4" x 3/4"

* Drop leg has 1/4"-18 male NPTF thread

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
