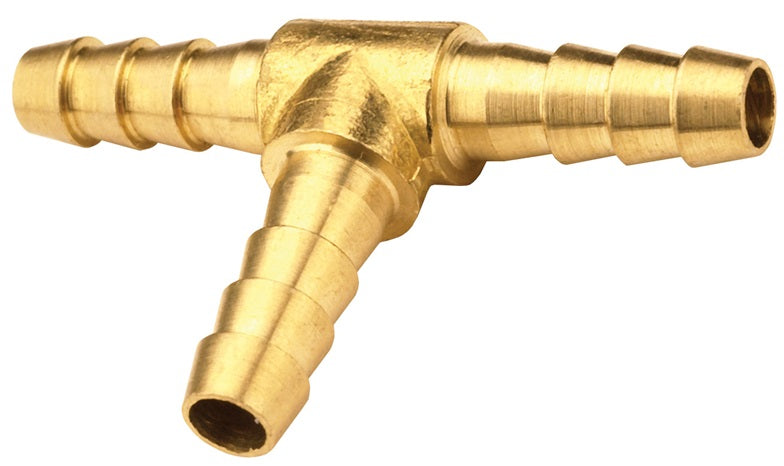

1790806C by Dixon Valve | Hose Mender / Splicer Reducer | Tee | 1/2" Hose ID x 1/2" Hose ID x 3/8" Hose ID Branch | Brass

1790806C by Dixon Valve | Hose Mender / Splicer Reducer | Tee | 1/2" Hose ID x 1/2" Hose ID x 3/8" Hose ID Branch | Brass

Save $6.53 Save $6.53
$13.48
$13.48 - $13.48
$13.48
$6.95
$6.95 - $6.95
$6.95

Dixon Valve
Hose Mender / Splicer | Tee | Hose Barb x Hose Barb x Hose Barb

Tee for connecting and branching three hoses.
Specifications for Variant SKU: 1790806C Dixon
Series: 179 Series
Shape (Orientation): Tee
Ends Configuration: 3/8in Hose Barb, 1/2in Hose Barb, 1/2in Hose Barb, Some Ends Match
Material(s): Brass
Construction:
  • Forged
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Lead-Free Brass
Part Number		 Stainless Steel Hose I.D.
Previous
Part Number 		Part Number Previous
Part Number 		Part Number
179-0202 1790202C - - - 1/8" x 1/8" x 1/8"
179-0303 1790303C - - - 3/16" x 3/16" x 3/16"
179-0402 1790402C - - - 1/4" x 1/4" x 1/8" Branch
179-0404 1790404C 1790404CLF 1790404SS 1790404SS 1/4" x 1/4" x 1/4"
179-0505 1790505C - - - 5/16" x 5/16" x 5/16"
179-0604 1790604C* - - - 3/8" x 3/8" x 1/4" Branch
- 1790604BARB - - - 3/8" x 3/8" x 1/4" Branch
179-0606 1790606C 1790606CLF 1790606SS 1790606SS 3/8" x 3/8" x 3/8"
179-0806 1790806C - - - 1/2" x 1/2" x 3/8" Branch
179-0808 1790808C - 1790808SS 1790808SS 1/2" x 1/2" x 1/2"
179-1010 1791010C - - - 5/8" x 5/8" x 5/8"
179-1208 1791208C - - - 3/4" x 3/4" x 1/2" Branch
179-1212 1791212C - - - 3/4" x 3/4" x 3/4"

* Drop leg has 1/4"-18 male NPTF thread

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
